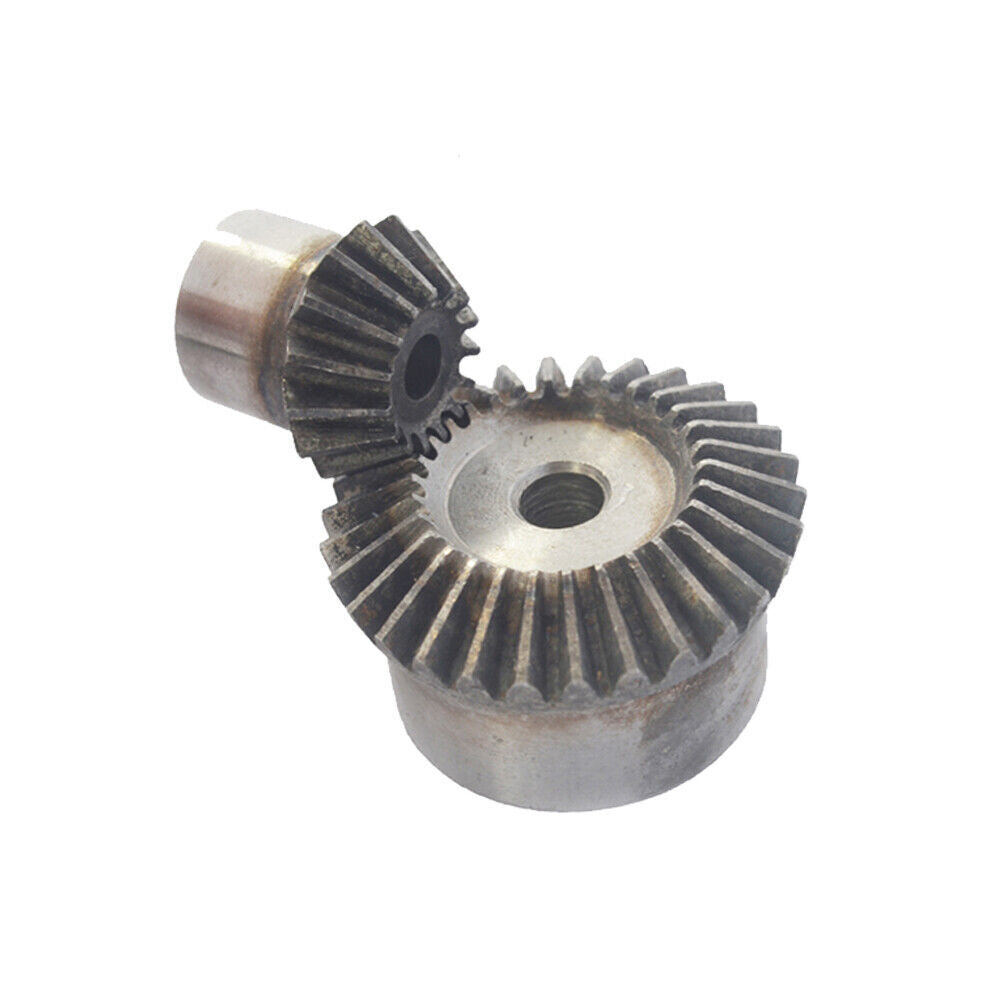

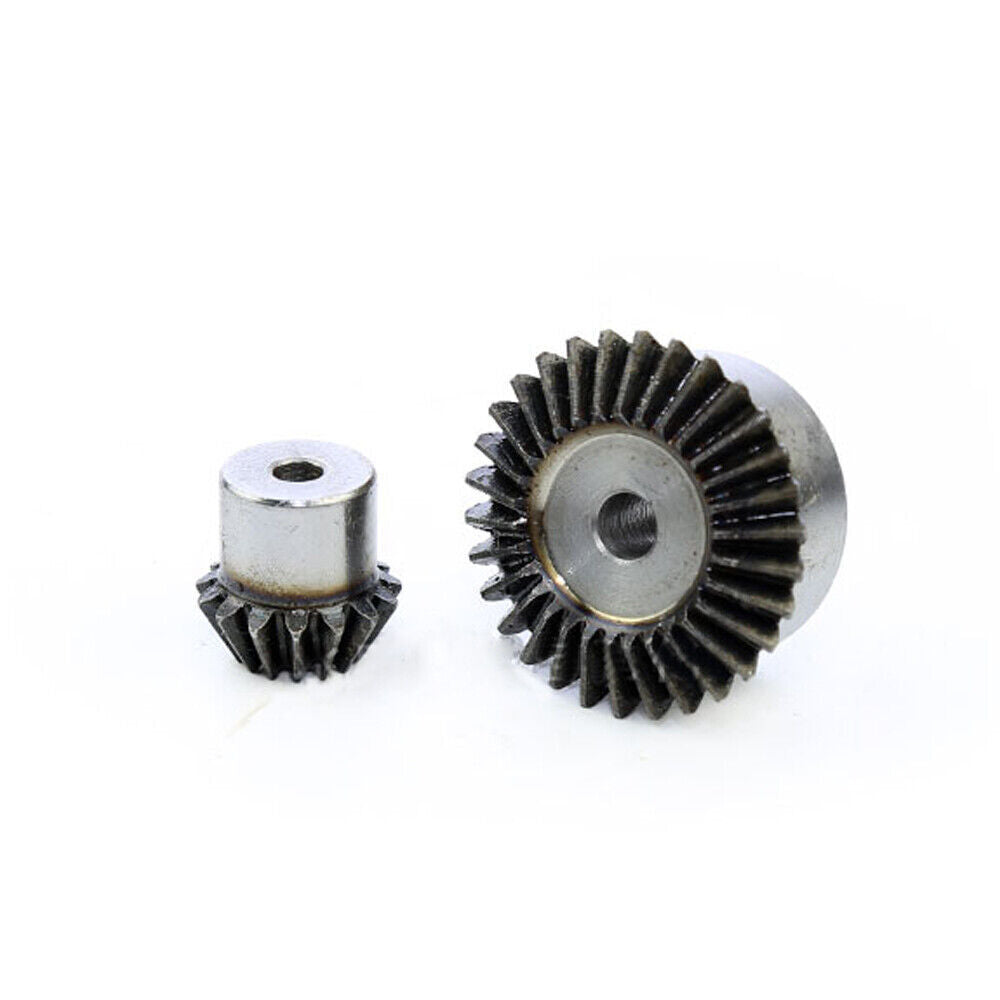

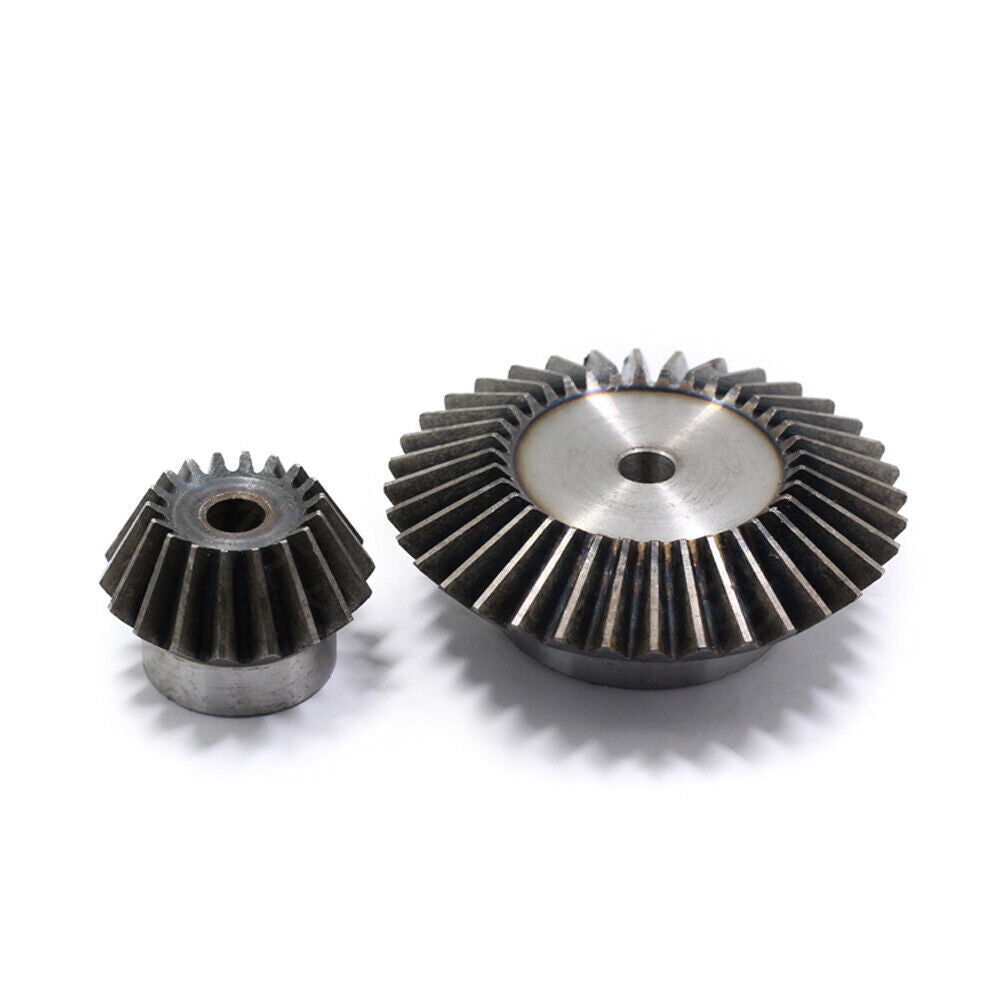

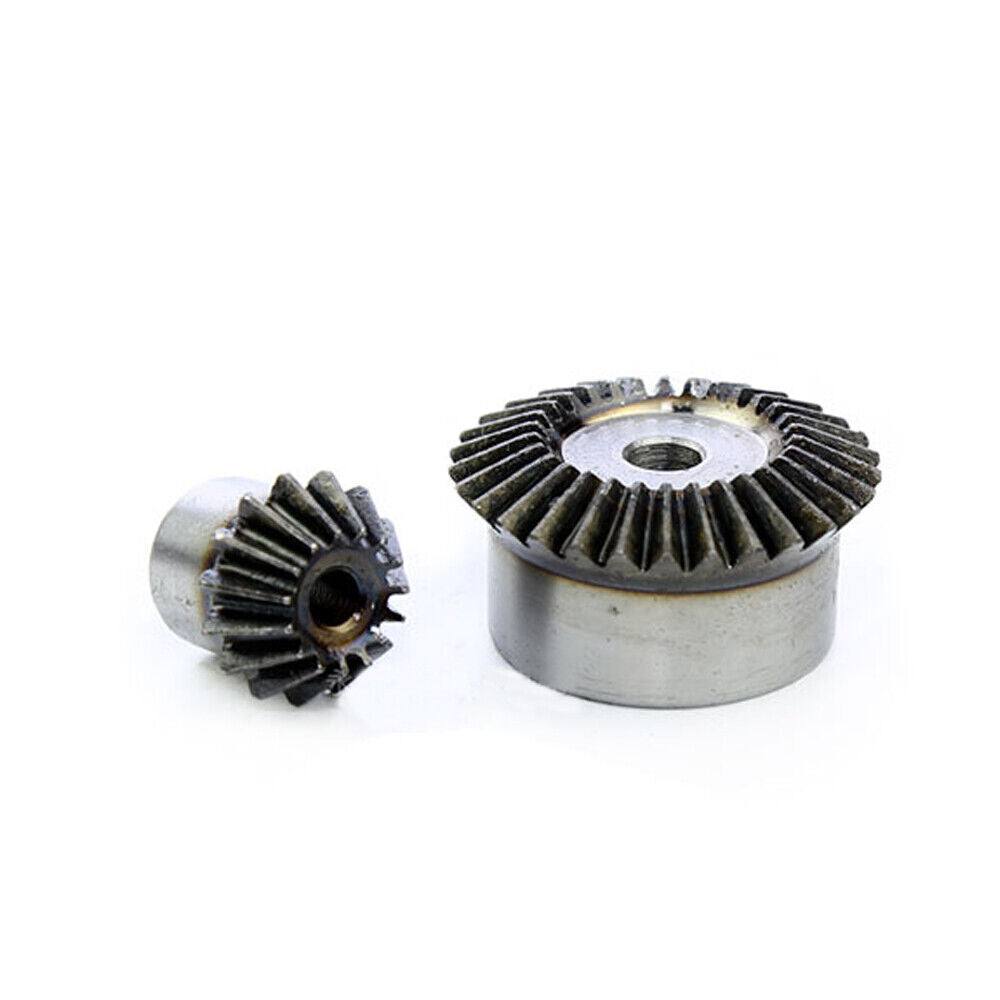

1 Pair 1.5 Modulus 1:2 Pairing Bevel Gears Combination 90° 20T + 40T C45 Steel

1 Pair 1.5 Modulus 1:2 Pairing Bevel Gears Combination 90° 20T + 40T C45 Steel



Gear Modulus: 1.5 Modulus
Drive ratio: 1:2 drive pairing
90° Pairing
Material： High quality 45# Carbon Steel
Heat treatment：High Frequency Quenching of Tooth
This product is a combined product, a pair contains ( a small Bevel Gear + a large Bevel Gear ). The combinations is (20T + 40T) .

- 1.5 Modulus Bevel Gear 20T:
Number of teeth：20T
Max outer diameter: 32mm
Step outer diameter: 26mm
Total length: 24mm
Teeth length: 12mm
- 1.5 Modulus Bevel Gear 40T:
Number of teeth：40T
Max outer diameter: 61mm
Step outer diameter: 48mm
Total length: 29mm
Teeth length: 14mm
