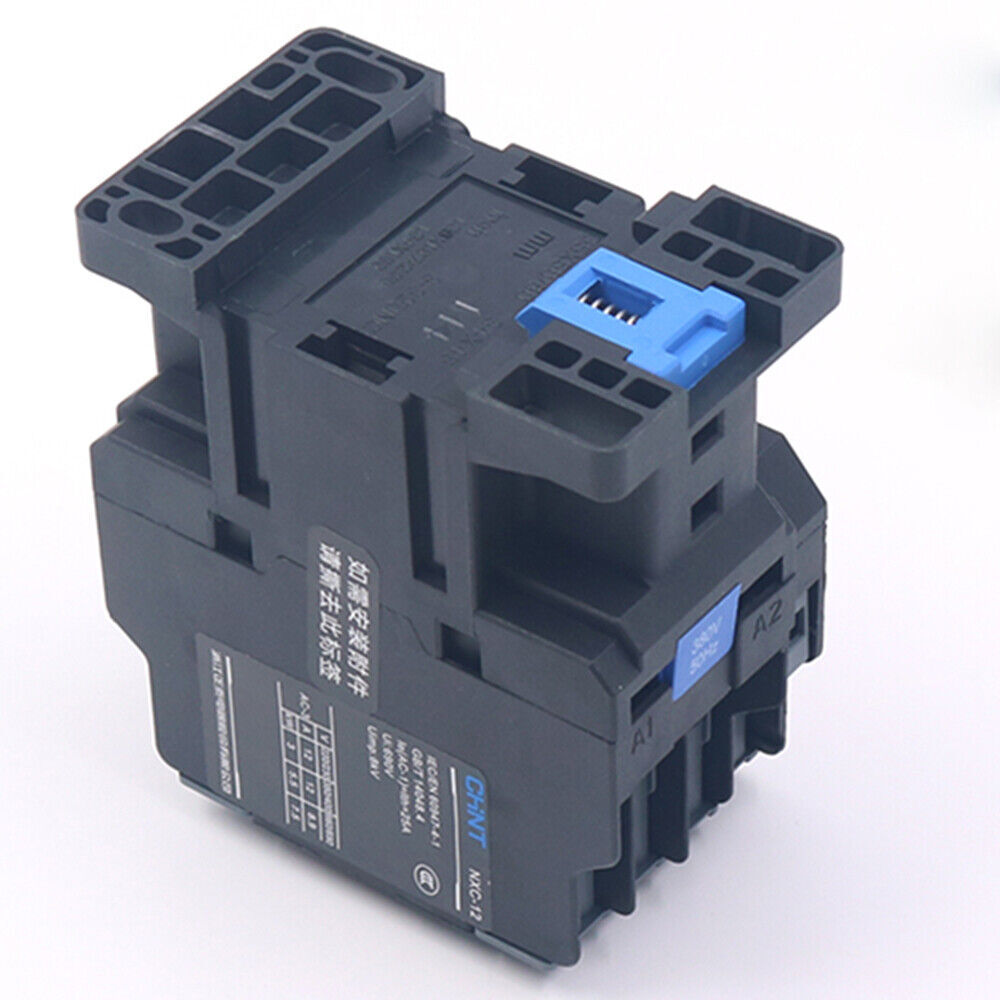

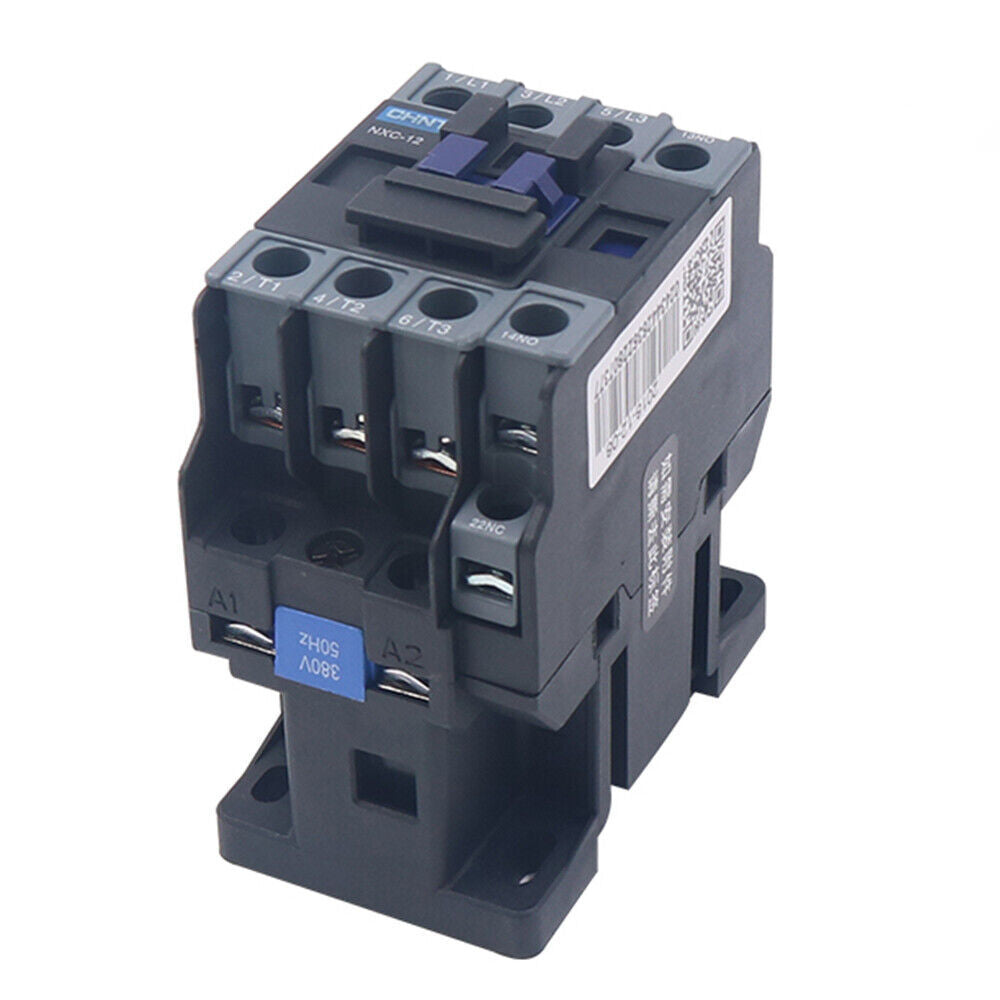

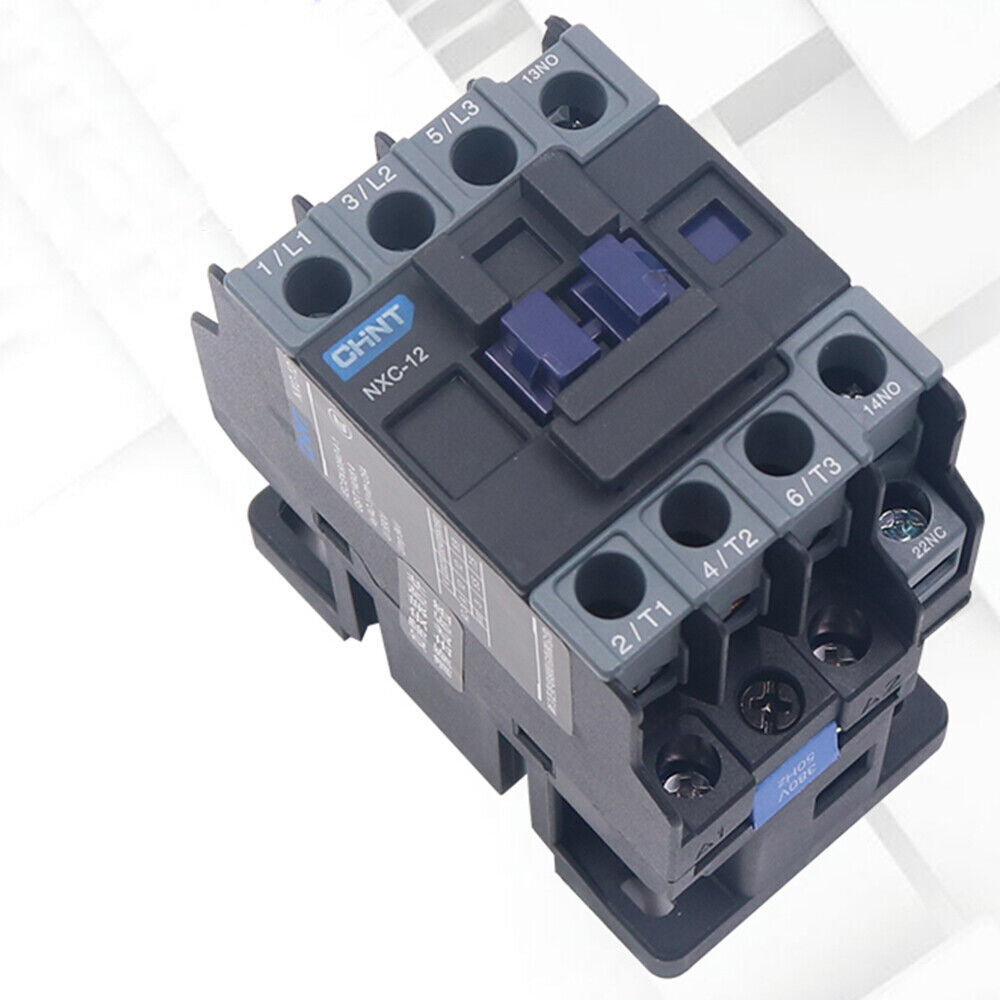

25 Amp AC Contactor 220V Coil Voltage 3 Pole NXC-25
Coil Voltage: 220V
Rated working voltage (Ue): 220V-690V
Rated insulation voltage (Ui): 690V
Rated impulse withstand voltage (Uimp): 8kV
Main Contact: 3 NO
Auxiliary Contact: 1 NO 1 NC
Housing Material: Plastic Flame Retardant Material
Contact Material: Silver Alloy Contact
Core Material: 32 Slice Silicon lamination ( silicon steel )
Coil Material: Pure Copper
Mounting Style: DIN Rail Mount
IP Rating (Only applicable to the front side): IP20
Mechanical life: 10 million cycles
Electrical life ( AC-3 ): 1.2 million cycles
Range of motion: The pull-in voltage is: 70%Us-120%Us; the release voltage is: 20%Us~65%Us
Ambient air temperature: The limit working temperature is -35℃~+70℃, and the average value of the normal working temperature does not exceed +35℃.
Rated working voltage (Ue): 220V-690V
Rated insulation voltage (Ui): 690V
Rated impulse withstand voltage (Uimp): 8kV
Main Contact: 3 NO
Auxiliary Contact: 1 NO 1 NC
Housing Material: Plastic Flame Retardant Material
Contact Material: Silver Alloy Contact
Core Material: 32 Slice Silicon lamination ( silicon steel )
Coil Material: Pure Copper
Mounting Style: DIN Rail Mount
IP Rating (Only applicable to the front side): IP20
Mechanical life: 10 million cycles
Electrical life ( AC-3 ): 1.2 million cycles
Range of motion: The pull-in voltage is: 70%Us-120%Us; the release voltage is: 20%Us~65%Us
Ambient air temperature: The limit working temperature is -35℃~+70℃, and the average value of the normal working temperature does not exceed +35℃.
