2pcs AXK2035 Thrust Needle Roller Bearings 20x35x2mm with AS2035 Washers
Specification:

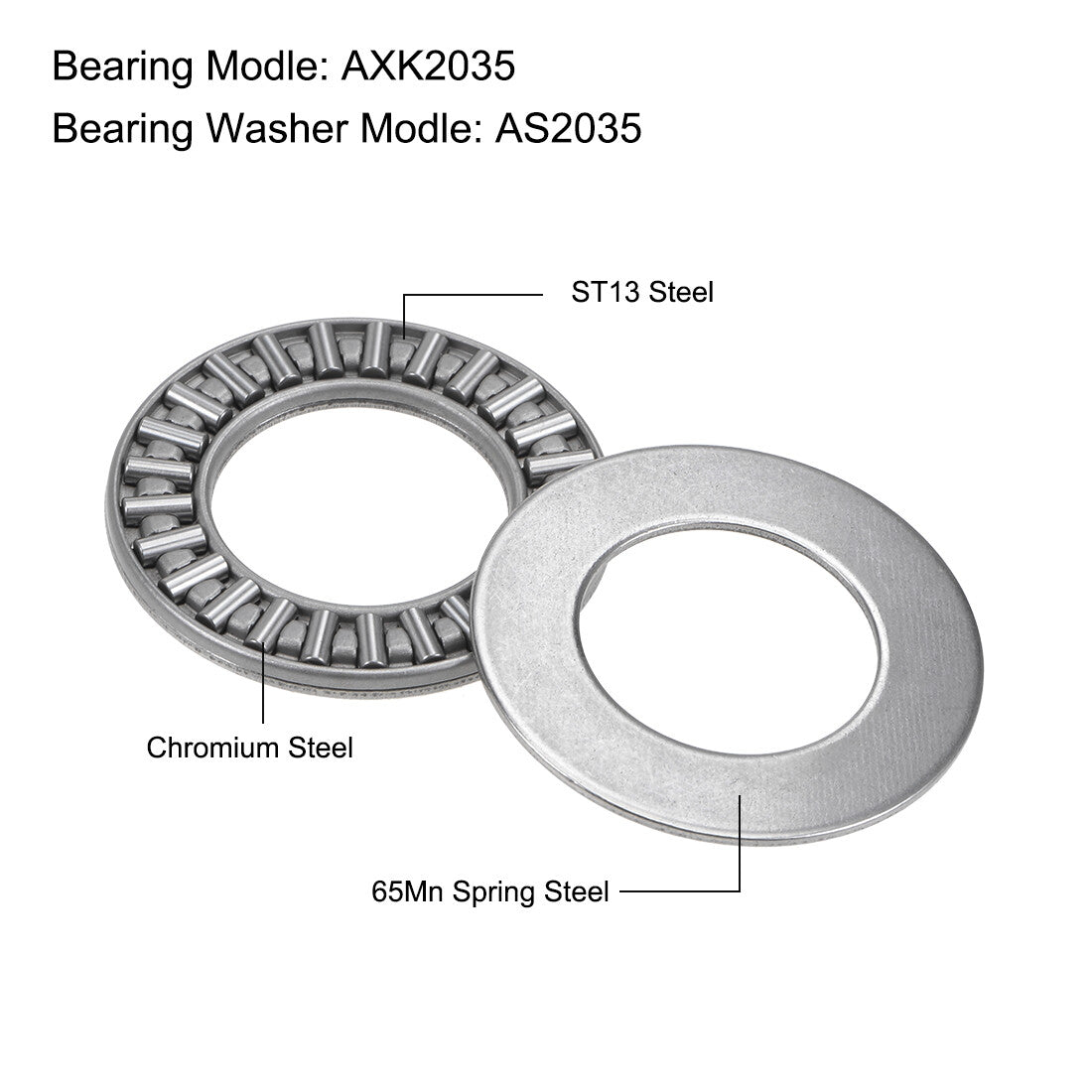

- Bearing Modle: AXK2035
- Bearing Washer Modle: AS2035
- Bearings Type: Needle Roller Bearing
- Needle Roller Meterial: Chromium Steel (GCr15)
- Cage Meterial: ST13 Steel
- Bearing Washer Meterial: 65Mn Spring Steel

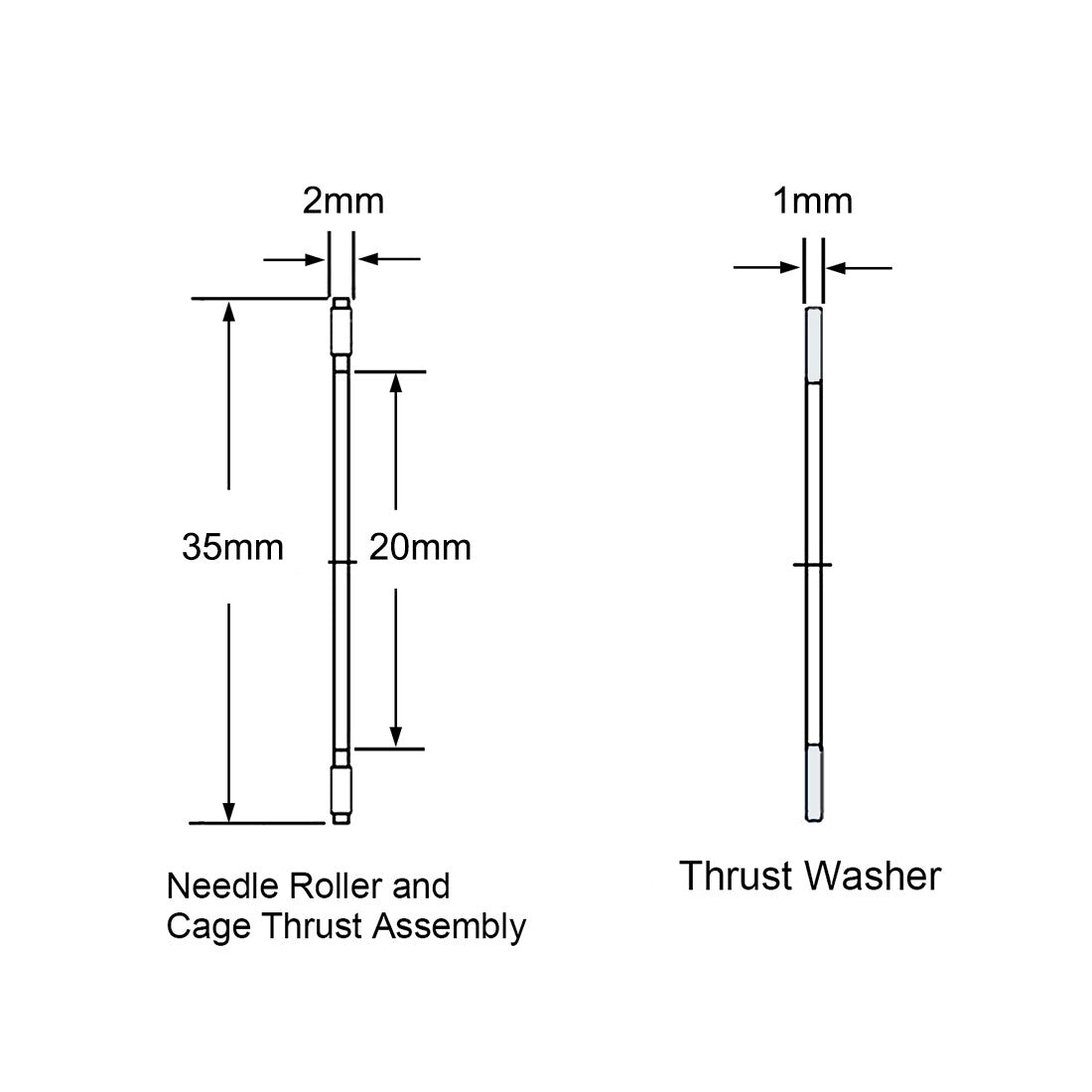

- Bore Diameter (d): 20mm
- Outside Diameter (D): 35mm
- Bearing Thickness (T1): 2mm
- Washer Thickness (T2): 1mm (Approx.)
- Dynamic Load Capacity (Cr): 12.9kN
- Static Load Capacity (Cor): 45.6kN
- Limiting Speed (Oil): 8500RPM

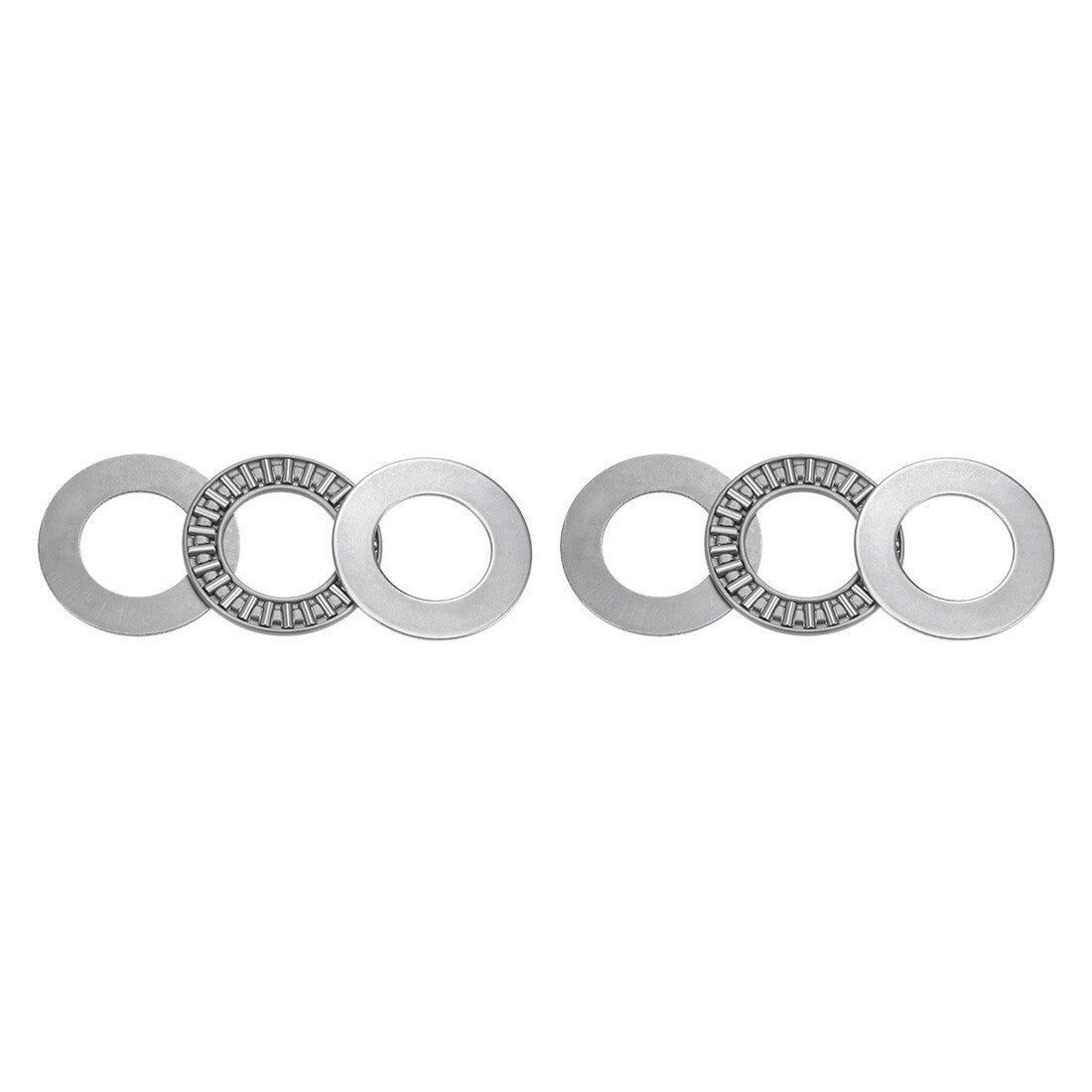

- 2 x Bearings
- 4 x Bearing Washers
Description:
- Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
- AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
- Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
