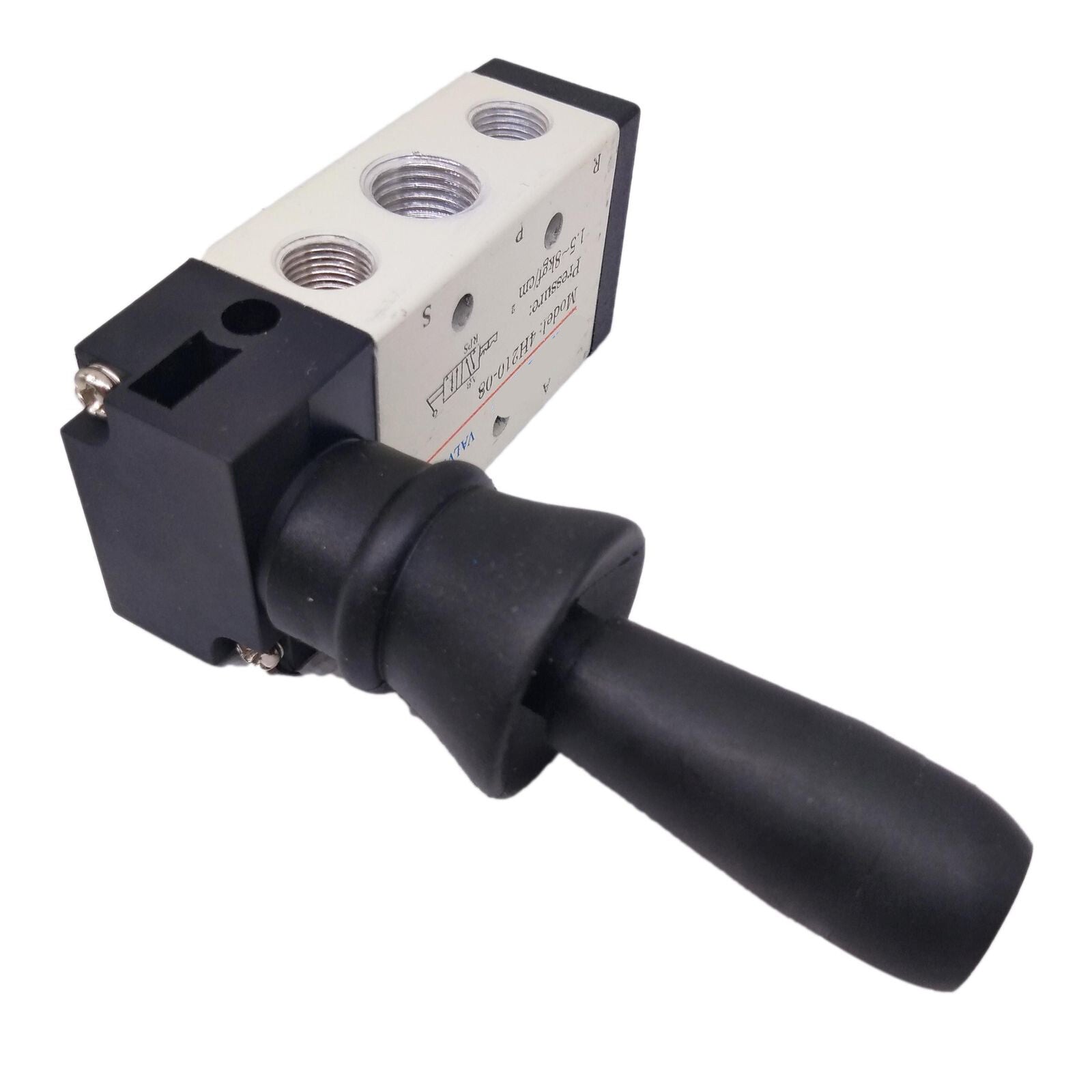

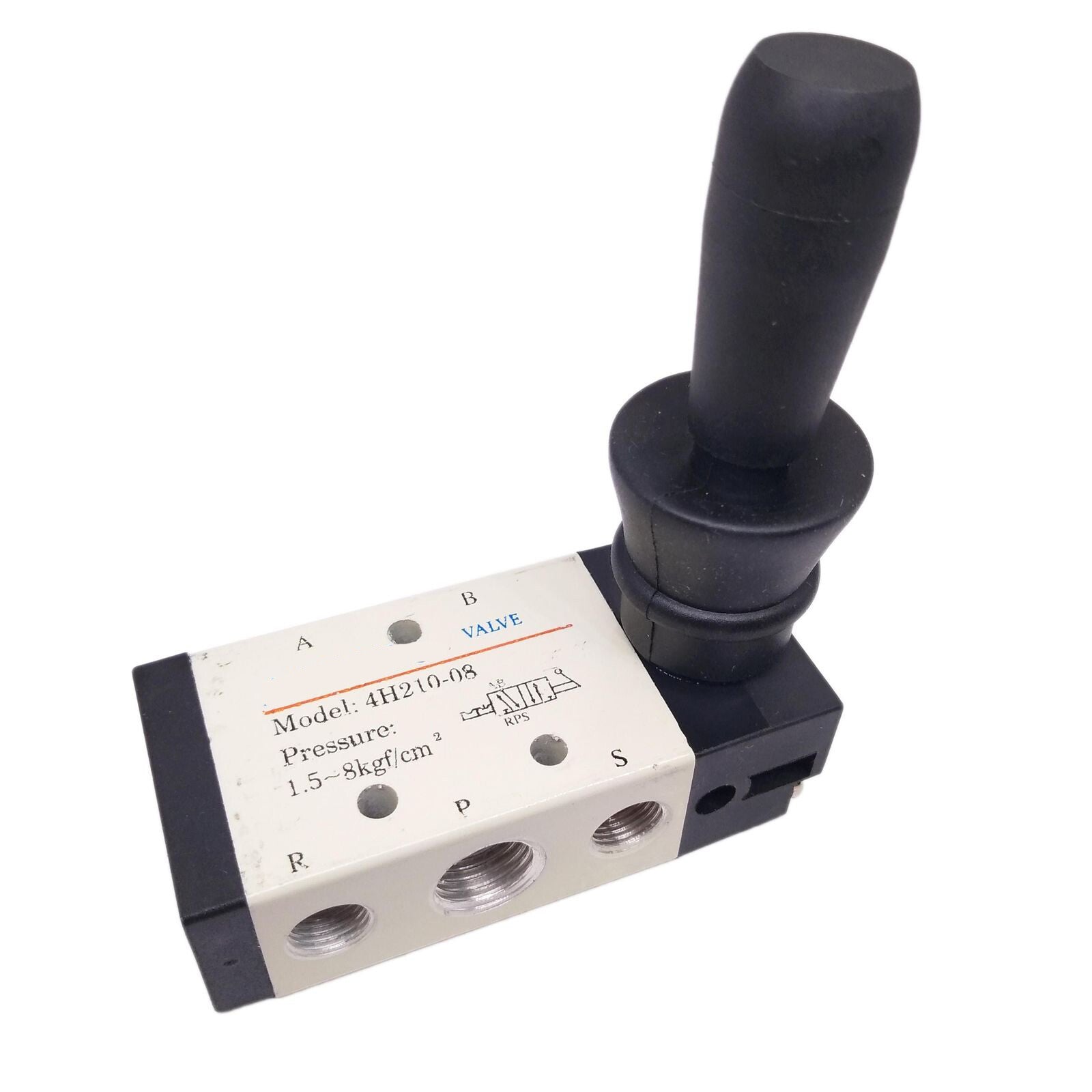

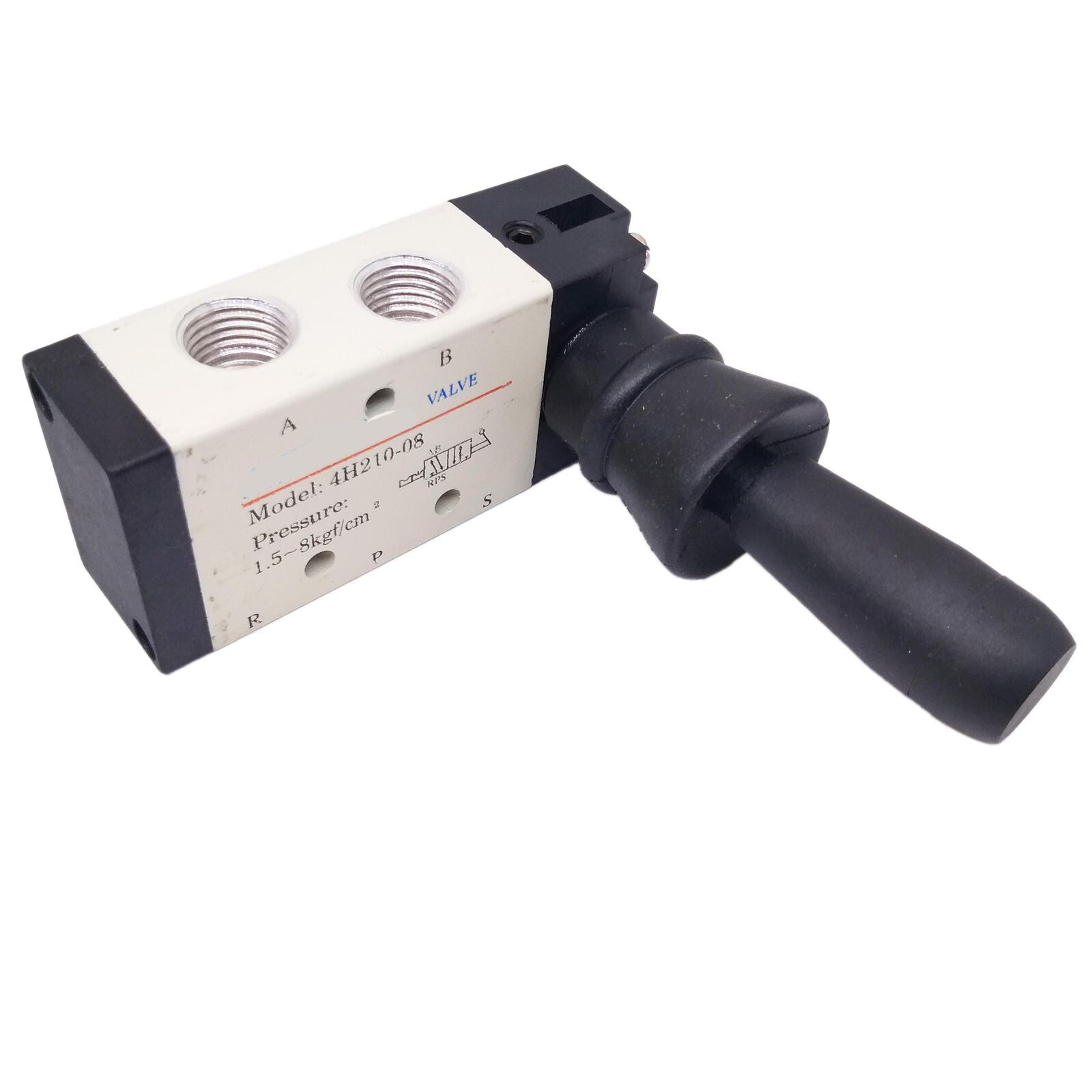

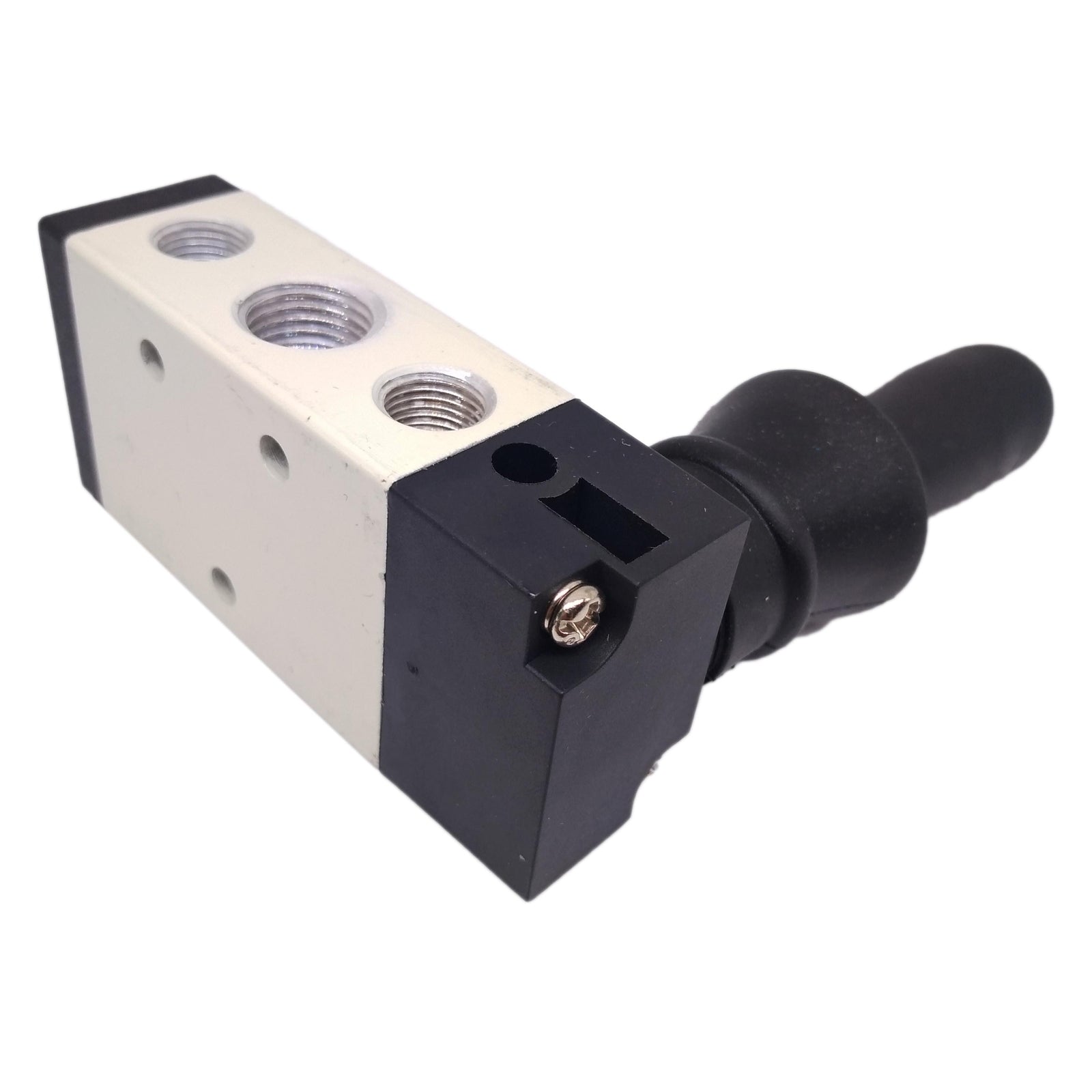

4H210-08 5 Ways 2 Position Pneumatic Mechincal Hand Lever Valve BSP

This Hand Lever Valve is 5 way 2 postions type, plastic covered handle.

Usage in large number of hydraulic machines.

Product Name:Hand Lever Valve

Model:4H210-08

Working Medium:Air

Joint Port Thread Diameter: Air Inlet=Air Outlet=12mm, Exhaust=9mm

Joint Port Size: Air Inlet=Air Outlet=1/4 PT, Exhaust=1/8 PT

Operating Temperature Range:0~60C

Working Pressure Range:1.5 - 8Kgf/cm²

Lever Size:70 x 27mm/(L*Max.D)

Valve Size:76 x 35 x 22mm (L*W*H)

Package:1 x Hand Lever Valve
