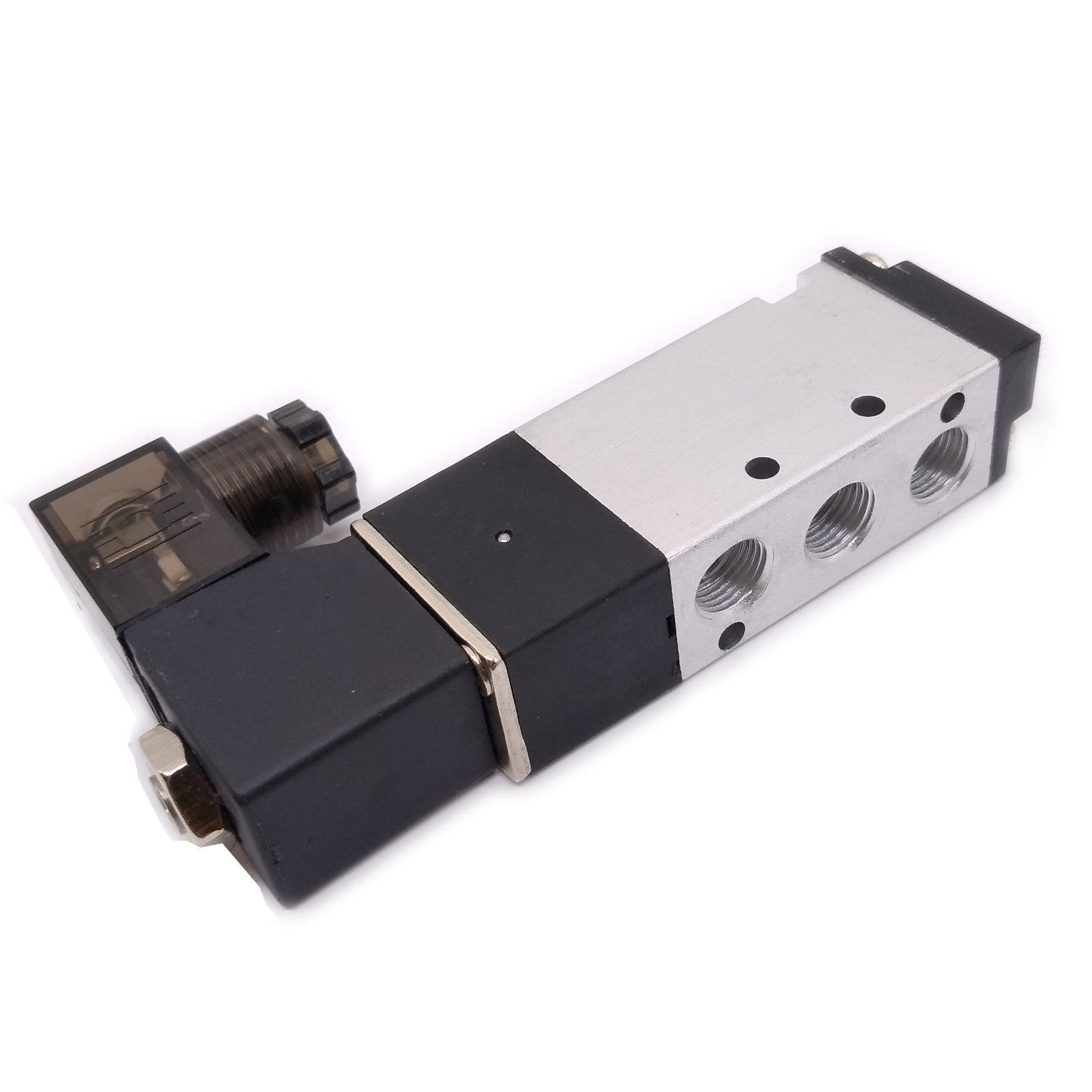

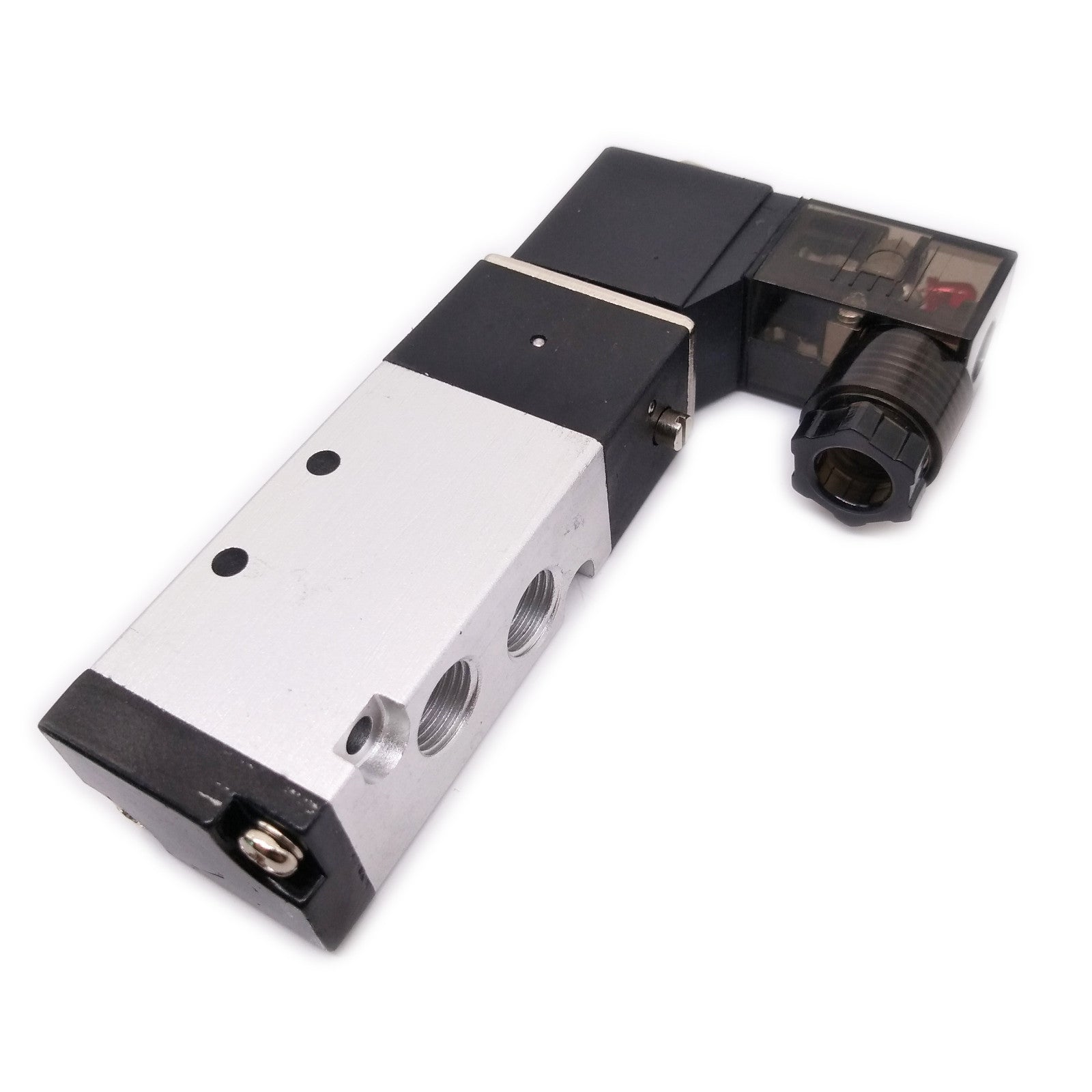

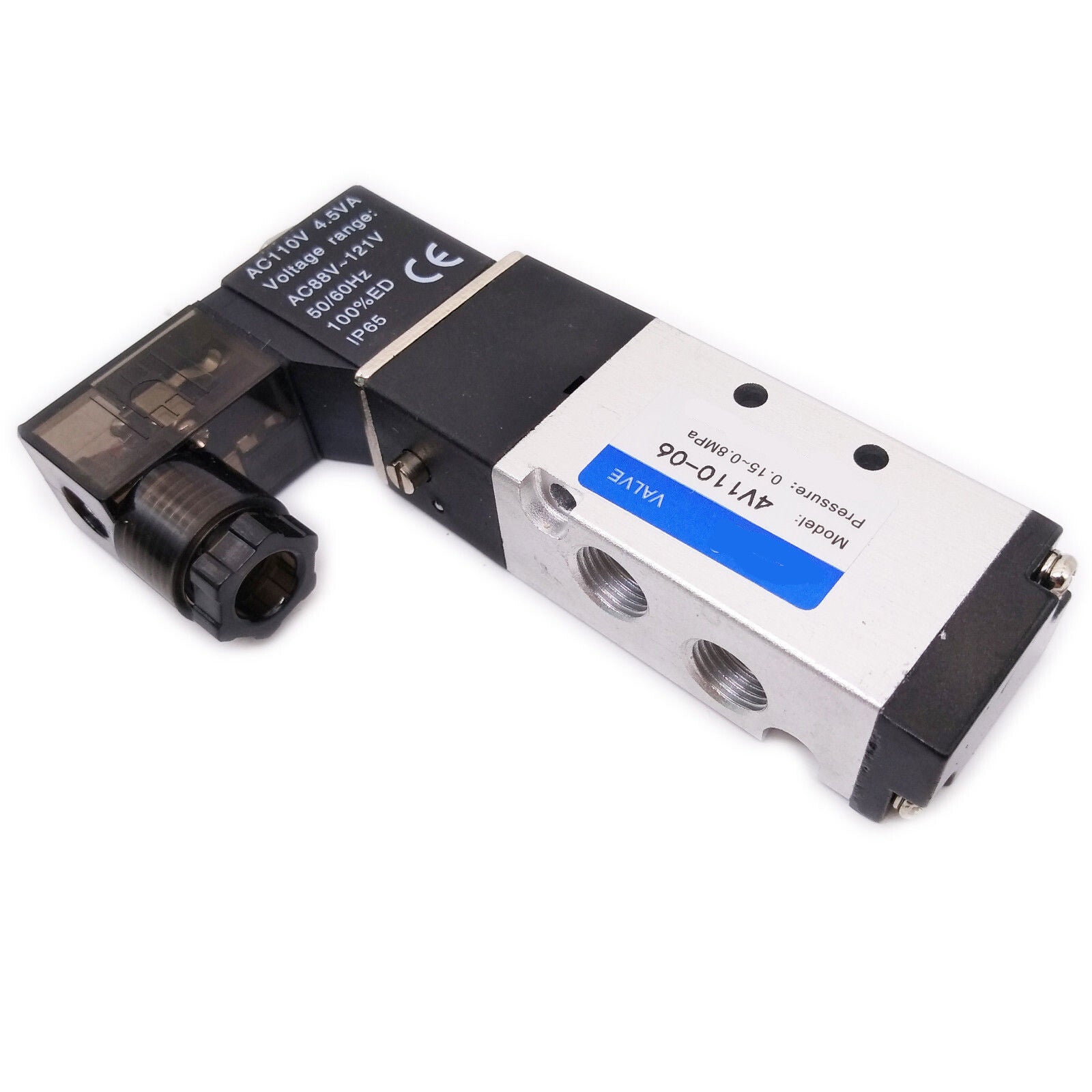

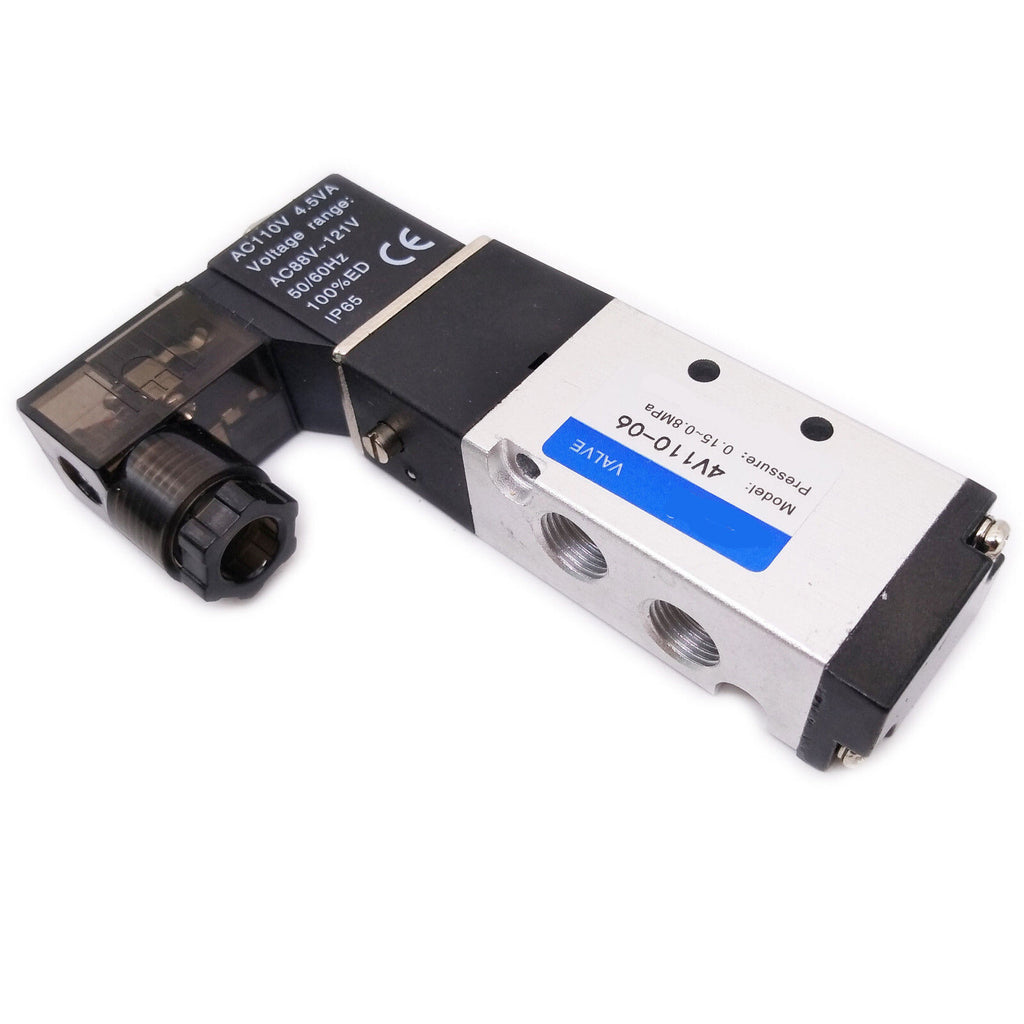

4V110-06 AC 110V 5 Way 2 Position 1/8" Pneumatic Solenoid Valve

4V110-06 AC 110V 5 Way 2 Position 1/8" Pneumatic Solenoid Valve

$33.94
Sale price  $33.94 Regular price
Skip to product information
4V110-06 AC 110V 5 Way 2 Position 1/8" Pneumatic Solenoid Valve

4V110-06 AC 110V 5 Way 2 Position 1/8" Pneumatic Solenoid Valve

$33.94
Sale price  $33.94 Regular price

New 4V110-06 AC 110V 5 Way 2 Position 1/8" Pneumatic Solenoid Valve 1/8 inch

Solenoid Air Valve 5 port 2 position 4V110-06
Model: 4V110-06
Positions: 5 ports/2 positions
Effective Section Area: 12mm² (CV=0.67)
Port Size: Air Inlet=Air Outlet=Exhaust=1/8"
Working Media/Fluld: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 0.15-0.8 MPa / 22-116 PSI
Max. Pressure Resistance: 1.2MPa / 174 PSI
Operating Tempe: -5 to + 50°C / 41-122°F
Allowable Voltage Fluctuation: ±10% of Rated Voltage
Insulation and Protection Class: F Class / IP65
Wiring Form: Lead Wire or Connector Type
Highest Action Frequency: 5/s
Shortest Excitation Time: 0.05 second
