65 Amp AC Contactor 220V Coil Voltage 3 Pole NXC-65
$86.42
Sale price
$86.42
Regular price
65 A AC Contactor 220V Coil Voltage Optional 3 Pole Normally Open / Closed
NXC-65

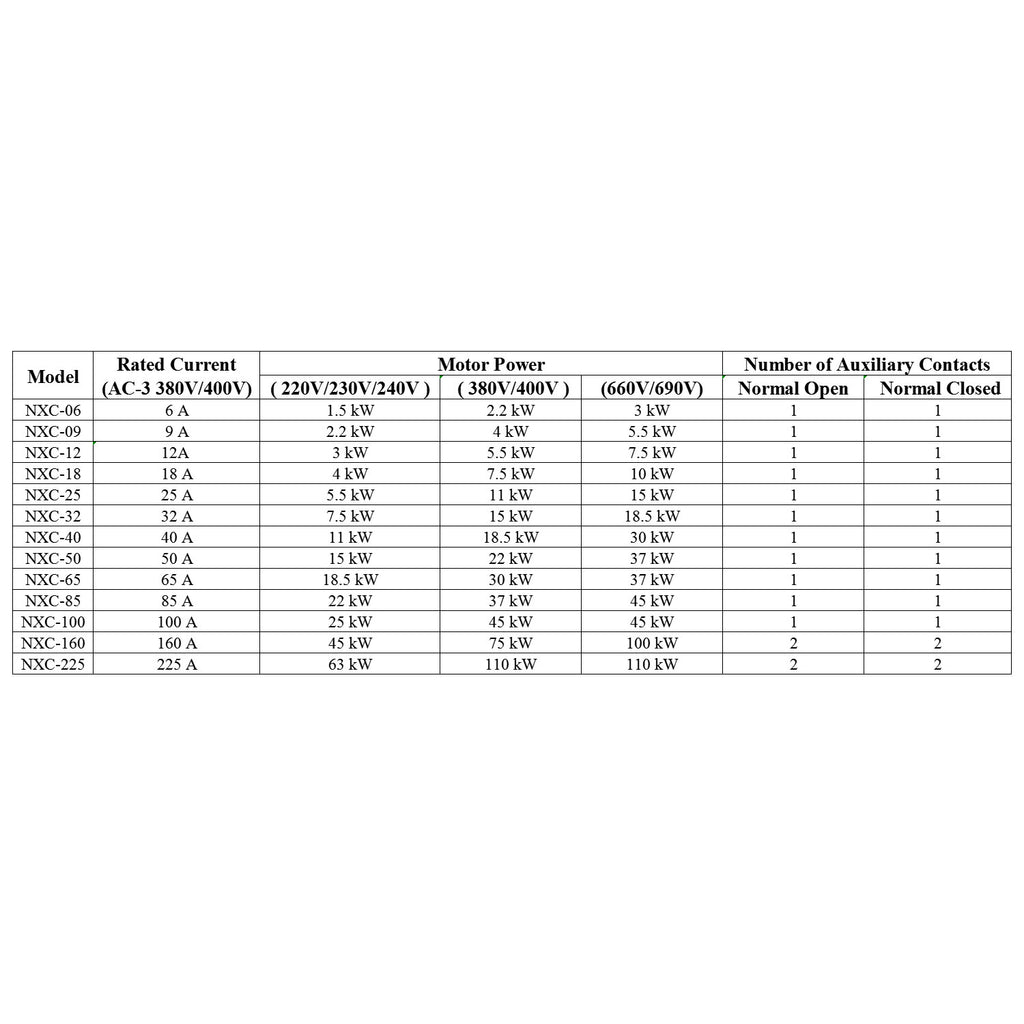

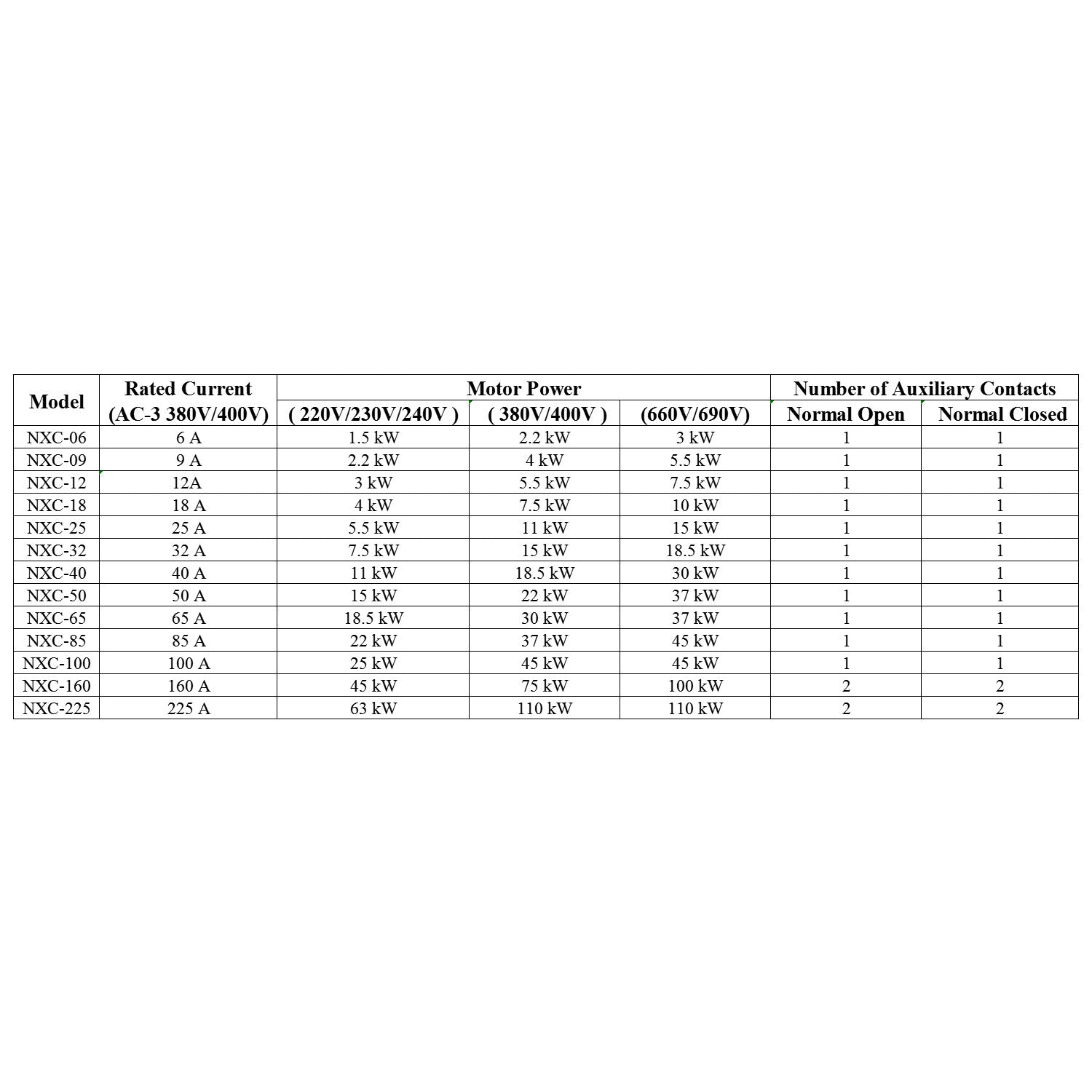

| Model | Rated Current (AC-3 380V/400V) | Motor Power | Number of Auxiliary Contacts | |||
| ( 220V/230V/240V ) | ( 380V/400V ) | (660V/690V) | Normally Open | Normally Closed | ||
| NXC-65 | 65 A | 18.5 kW | 30 kW | 37 kW | 1 | 1 |
● Model: NXC-65
● Coil Voltage: AC 220V
● Rated working voltage (Ue): 220V-690V
● Rated insulation voltage (Ui): 690V
● Rated impulse withstand voltage (Uimp): 8kV
● Main Contact: 3 NO
● Auxiliary Contact: 1 NO 1 NC
"NO" = Normally Open, "NC" = Normally Closed
● Housing Material: Plastic Flame Retardant Material
● Contact Material: Silver Alloy Contact
● Core Material: 32 Slice Silicon lamination ( silicon steel )
● Coil Material: Pure Copper

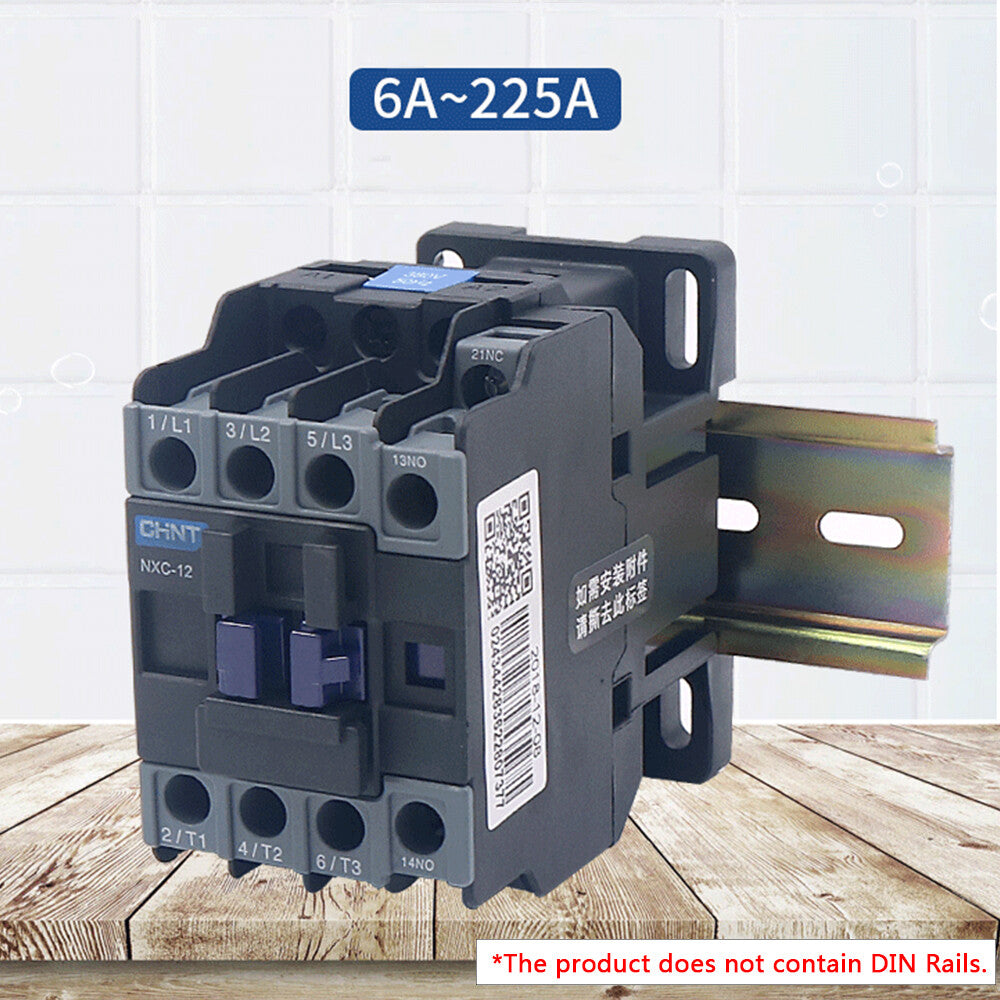

● Mounting Style: DIN Rail Mount
● IP Rating (Only applicable to the front side): IP10
● Mechanical life: - 9 million cycles ( NXC-65 )
● Electrical life ( AC-3 ): 0.8 million cycles
● Range of motion: The pull-in voltage is: 70%Us-120%Us; the release voltage is: 20%Us~65%Us
● Ambient air temperature: The limit working temperature is -35℃~+70℃, and the average value of the normal working temperature does not exceed +35℃.
● Altitude: not more than 2000m.
● Altitude: not more than 2000m.
Package included : 1pcs
High-quality materials, environmentally friendly, safe, reliable, and durable, small size, light weight, many varieties and complete specifications. Have complete functions, convenient and flexible installation, easy maintenance, and better cost-effectiveness, allowing you to easily build a safe and exquisite power distribution network.
NXC series AC contactors are used to connect and disconnect the circuit remotely, frequently start and control the AC motor, and can be combined with the appropriate thermal relay to form an electromagnetic starter to protect the circuit that may be overloaded.
