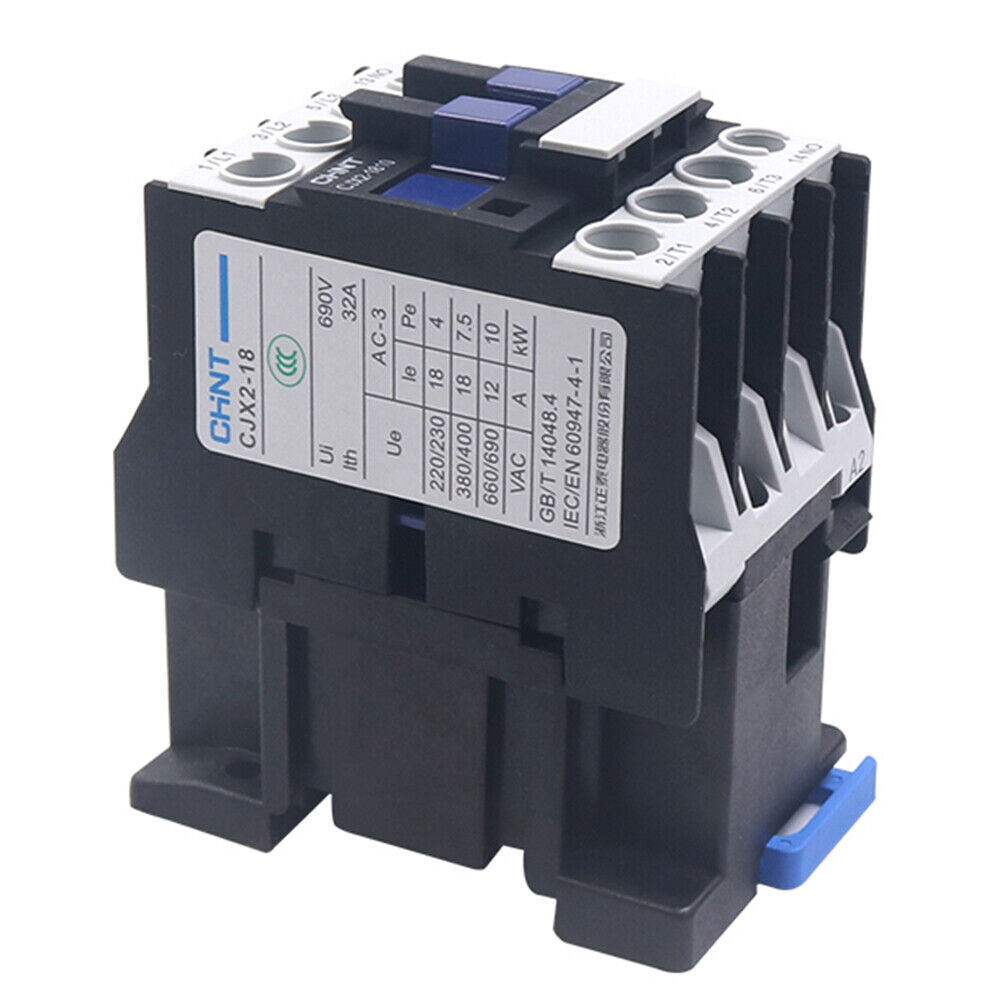

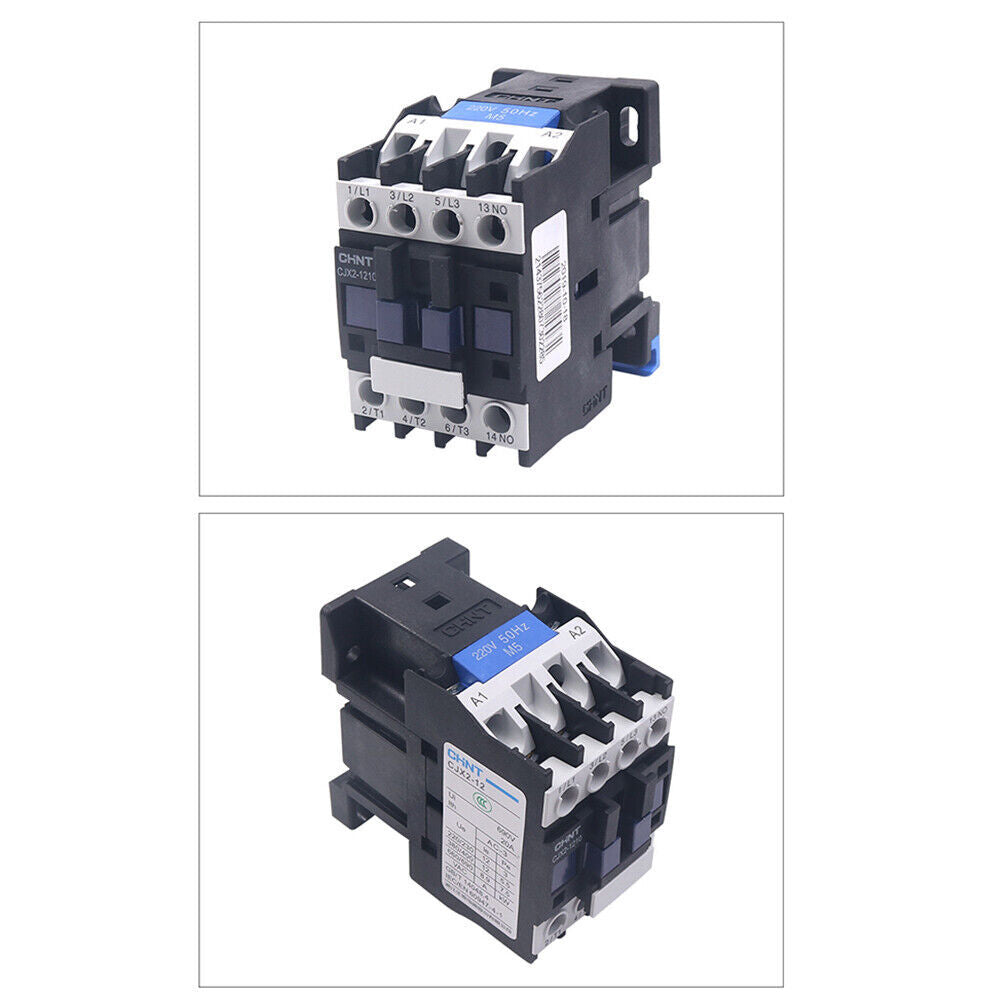

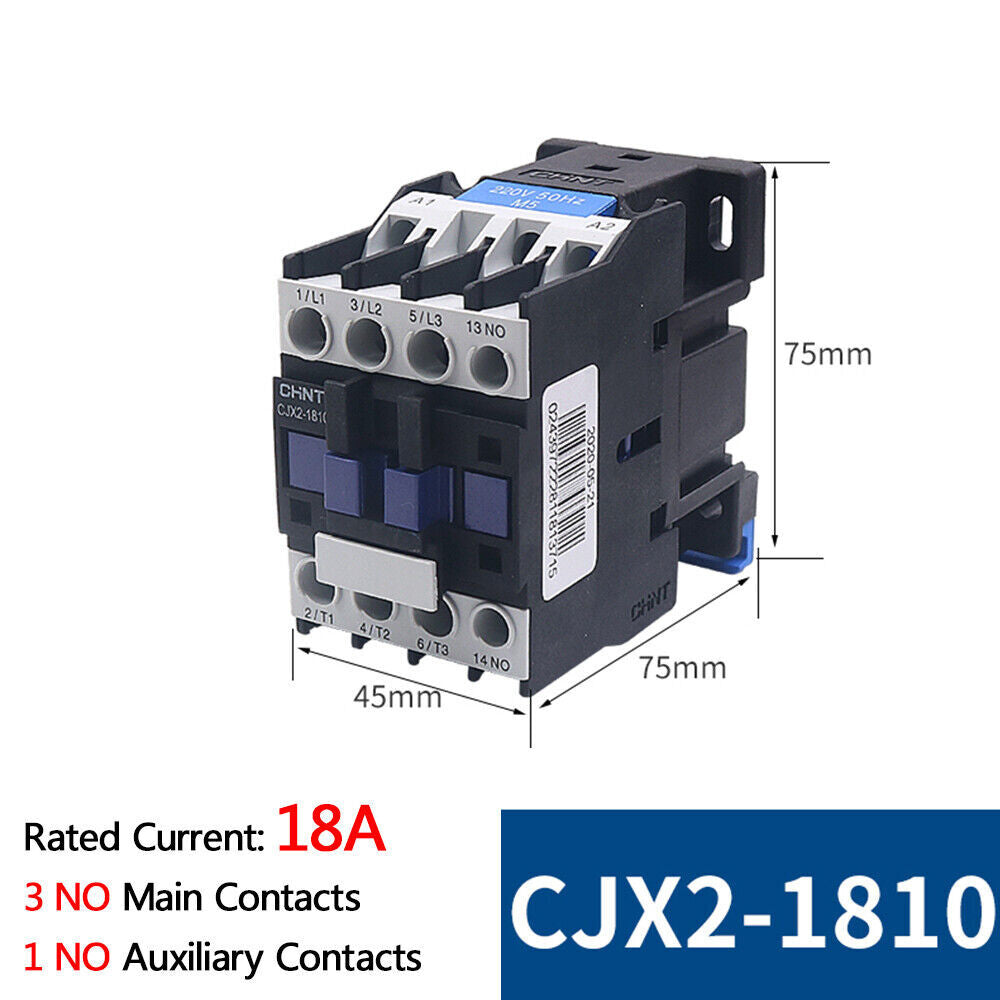

AC Contactors 18 Amp 110V Coil Voltage 3 Pole 1 NO Auxiliary Contacts CJX2-1810

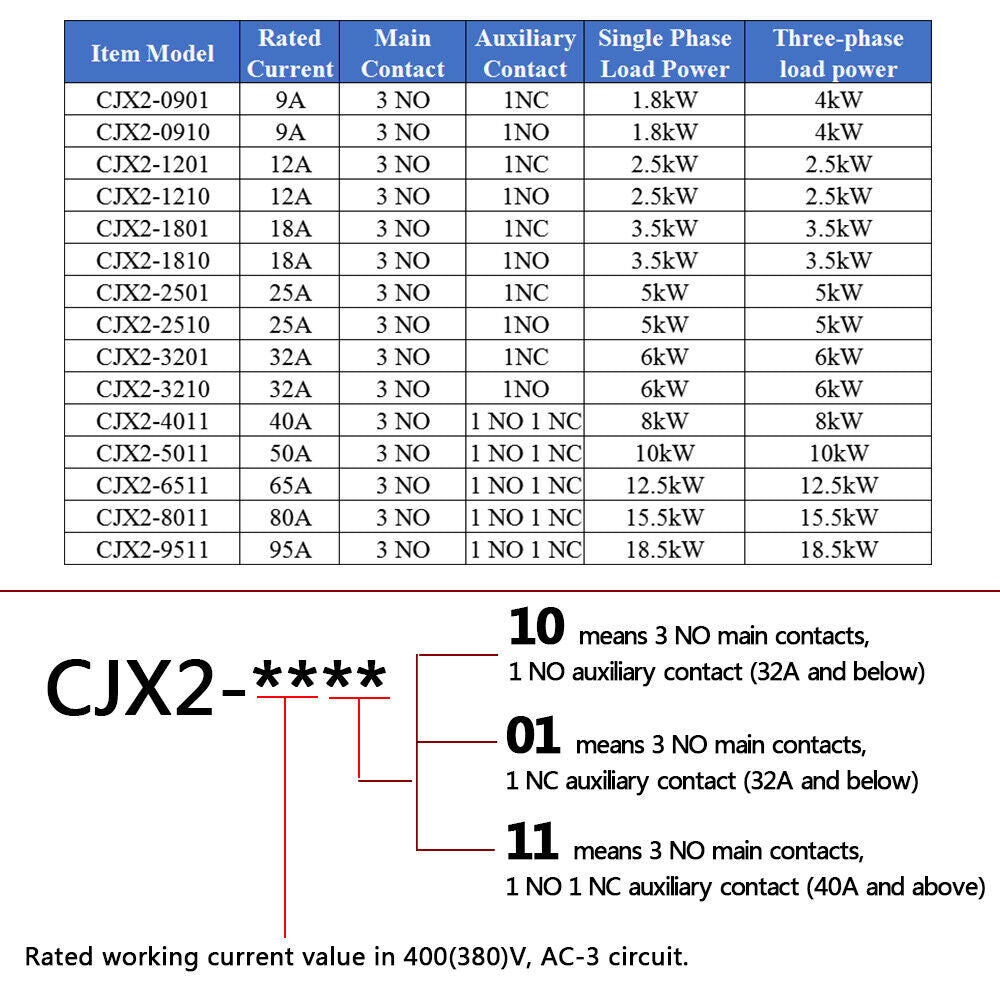

Item Model: CJX2-1810
Rated Current : 18A

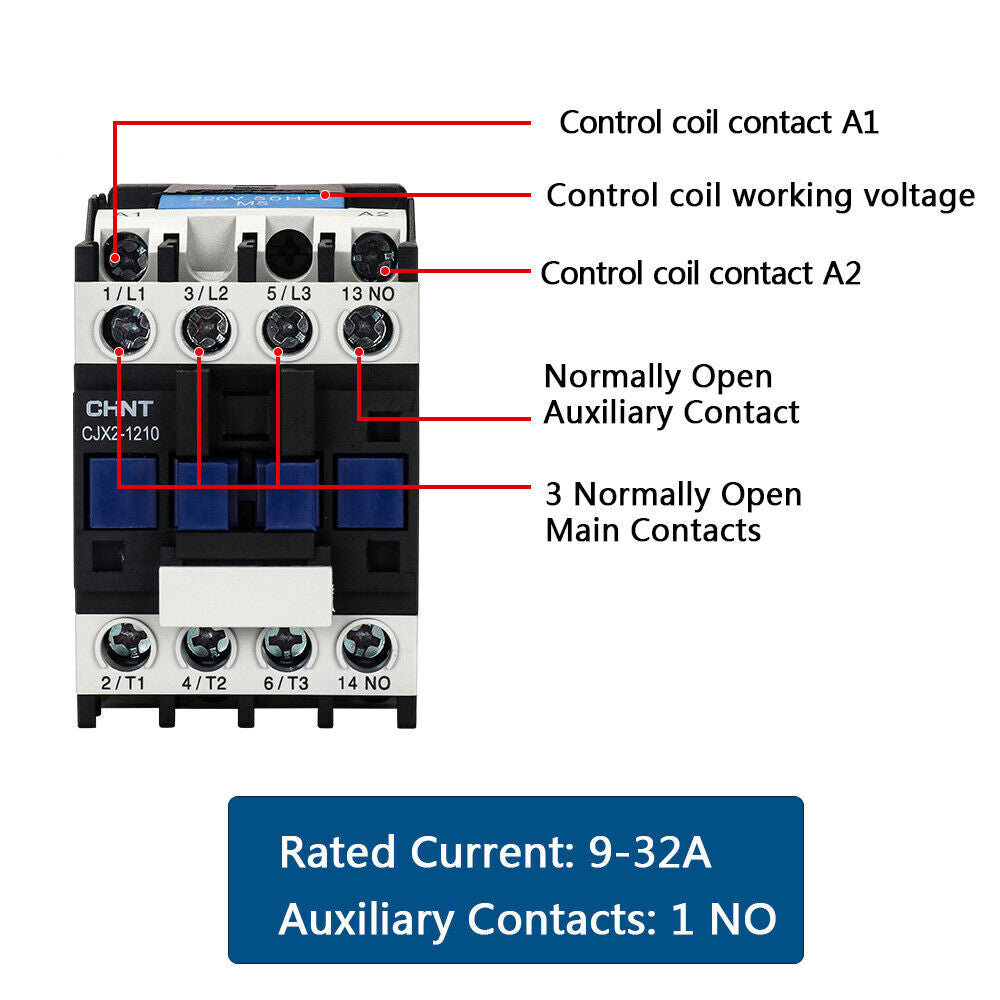

Main Contact: 3 NO
Auxiliary Contact: 1 NO Auxiliary Contacts
Single Phase Load Power: 3.5kW
Three-phase load power: 3.5kW
Rated Current : 18A
Main Contact: 3 NO
Auxiliary Contact: 1 NO Auxiliary Contacts
Single Phase Load Power: 3.5kW
Three-phase load power: 3.5kW
Coil Voltage: AC 110V
Rated insulation voltage (Ui): 690V

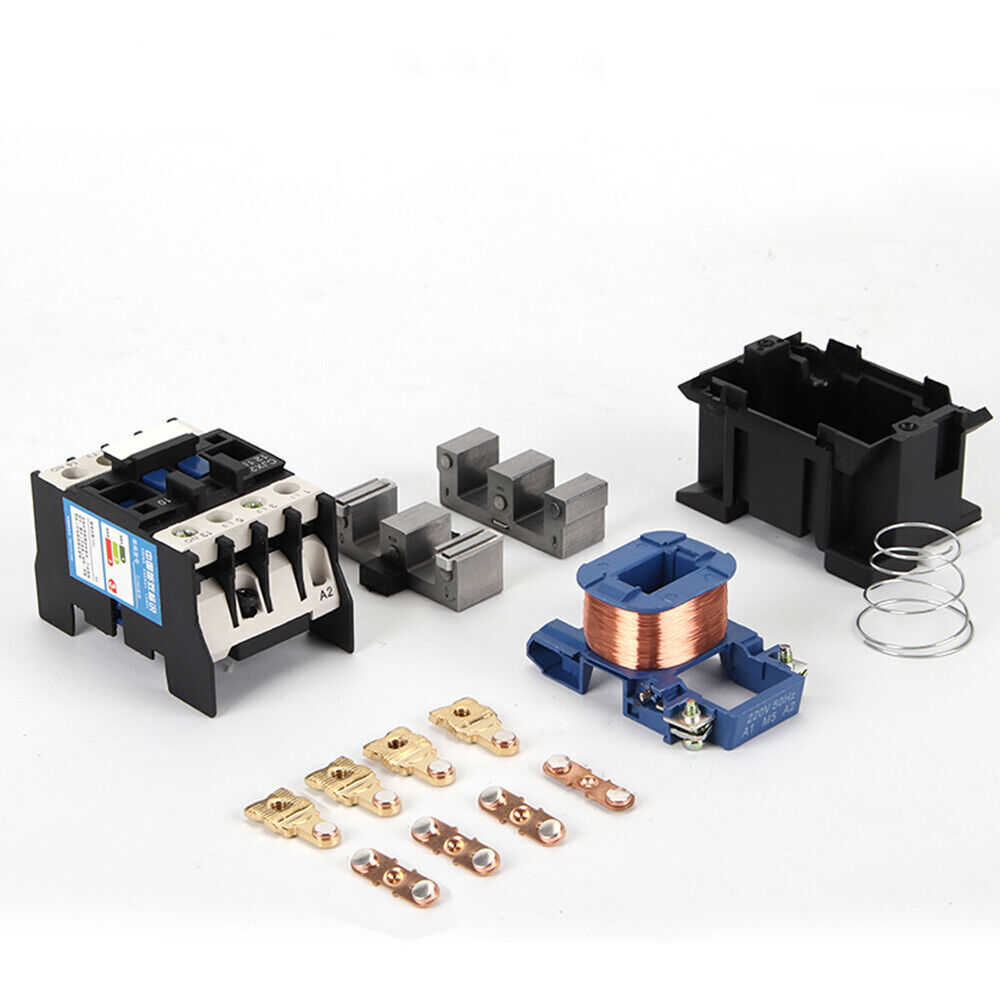

Housing Material: Plastic Flame Retardant Material

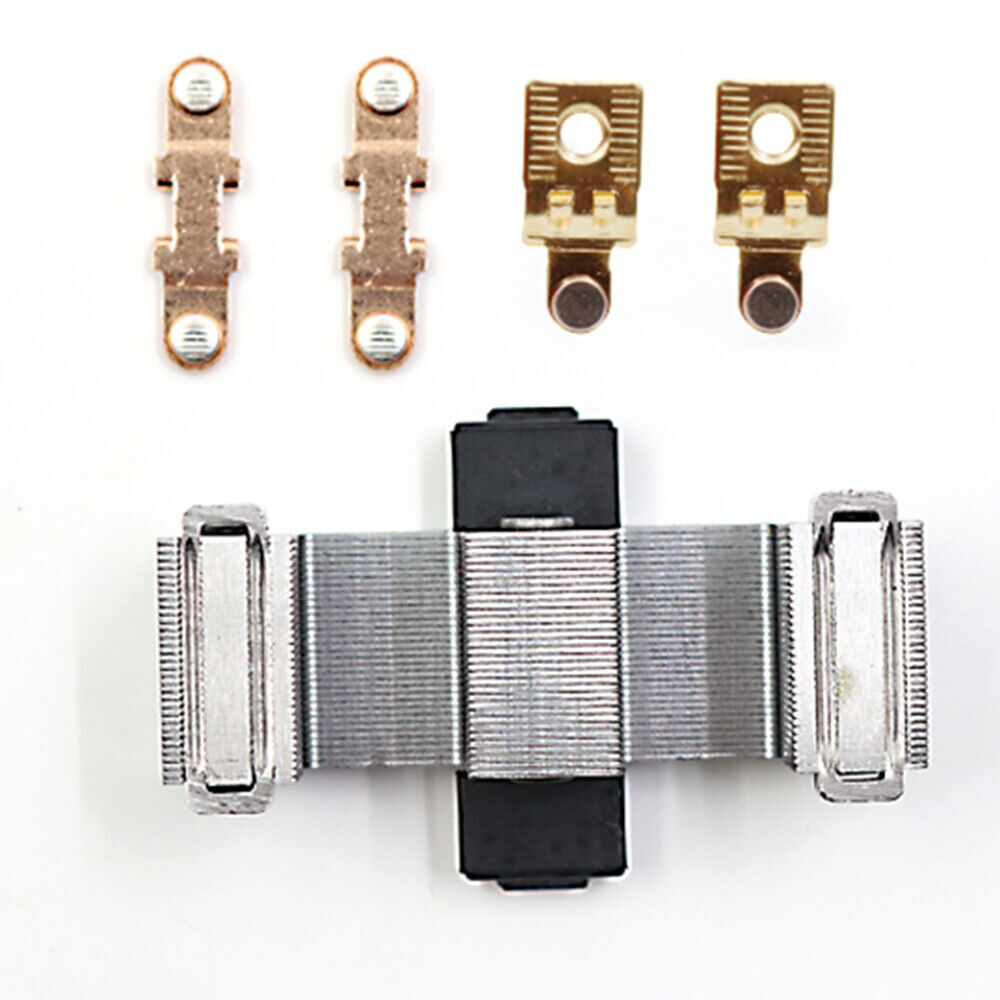

Contact Material: Silver Alloy Contact

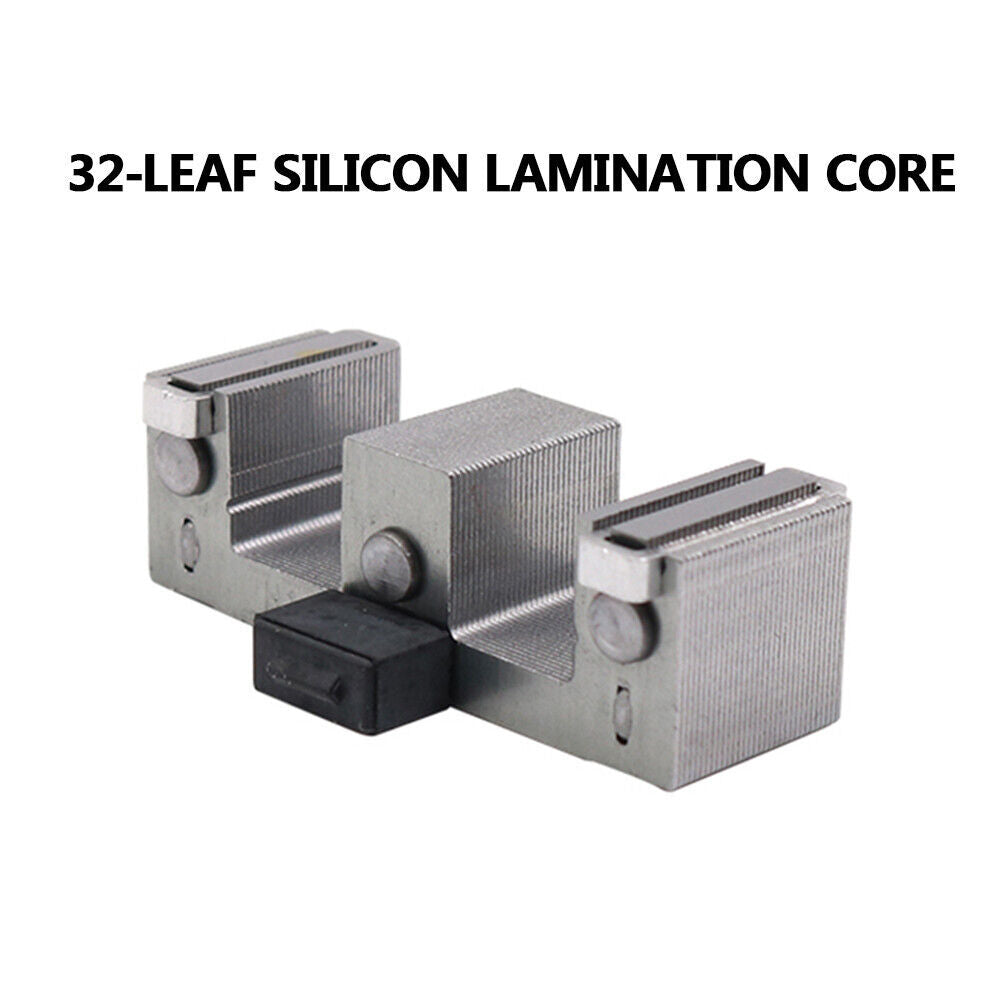

Core Material: 32 Slice Silicon lamination ( Silicon Steel )

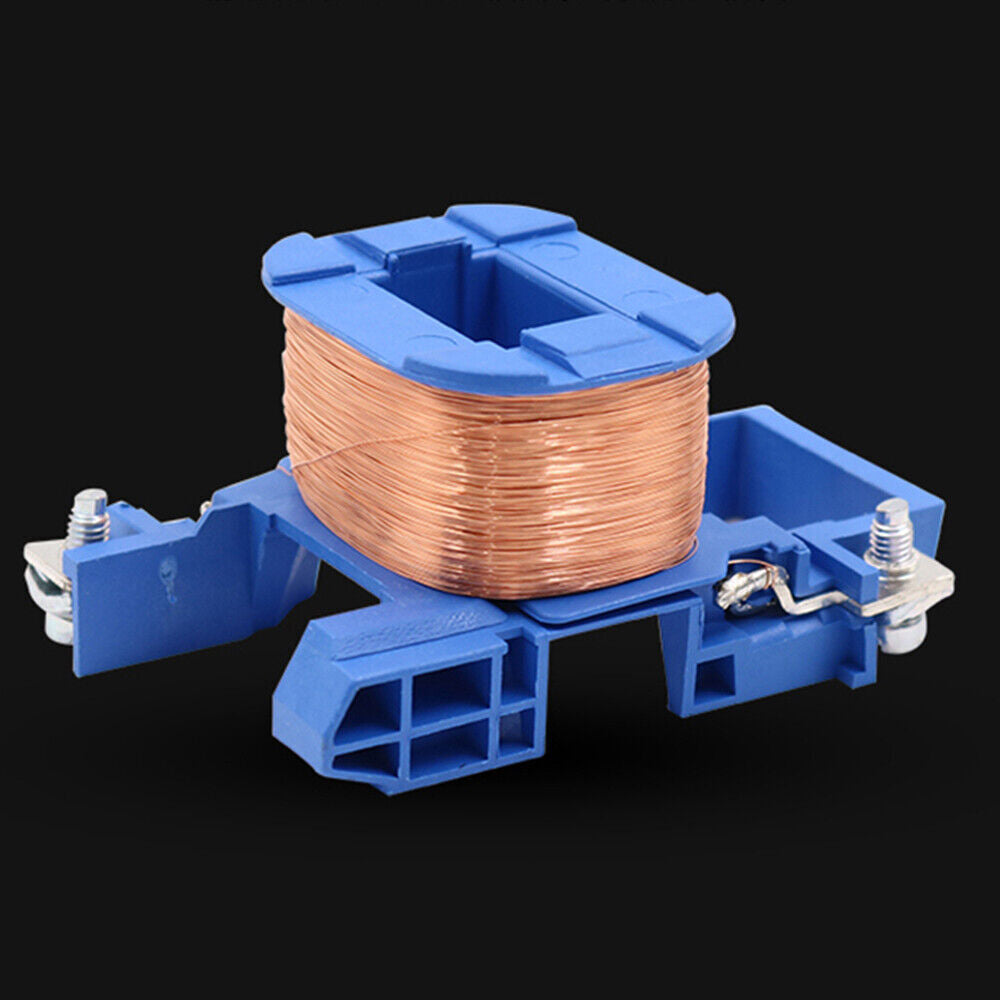

Coil Material: Pure Copper
Mounting Style: DIN Rail
Mechanical life: 10 million cycles
Electrical life (AC-3): 1 million cycles
Range of motion: The pull-in voltage is: 85%Us~110%Us; the release voltage is: 20%Us~75%Us
Basic parameters of auxiliary contacts: AC-15: Ie: 0.95A; Ue: 380/400V DC-13: Ie: 0.15A; Ue: 220/250V; Ith: 10A
Ambient air temperature: -5℃~+40℃, the average value within 24 hours does not exceed +35℃.
Altitude: not more than 2000m.
Rated insulation voltage (Ui): 690V
Housing Material: Plastic Flame Retardant Material
Contact Material: Silver Alloy Contact
Core Material: 32 Slice Silicon lamination ( Silicon Steel )
Coil Material: Pure Copper
Mounting Style: DIN Rail
Mechanical life: 10 million cycles
Electrical life (AC-3): 1 million cycles
Range of motion: The pull-in voltage is: 85%Us~110%Us; the release voltage is: 20%Us~75%Us
Basic parameters of auxiliary contacts: AC-15: Ie: 0.95A; Ue: 380/400V DC-13: Ie: 0.15A; Ue: 220/250V; Ith: 10A
Ambient air temperature: -5℃~+40℃, the average value within 24 hours does not exceed +35℃.
Altitude: not more than 2000m.
Amount: 1pcs
