AU Stock Din Rail Mounting Momentary Push Button Switch 2NO 2NC NP9
$31.32
Sale price
$31.32
Regular price
Skip to product information
On 21/12/2024 at 12:20:44 AEDT, seller added the following information:
AU Stock Din Rail Mounting Momentary Push Button Switch 2NO 2NC NP9
$31.32
Sale price
$31.32
Regular price

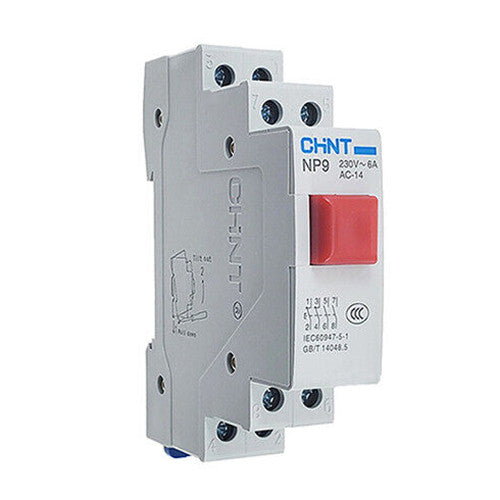

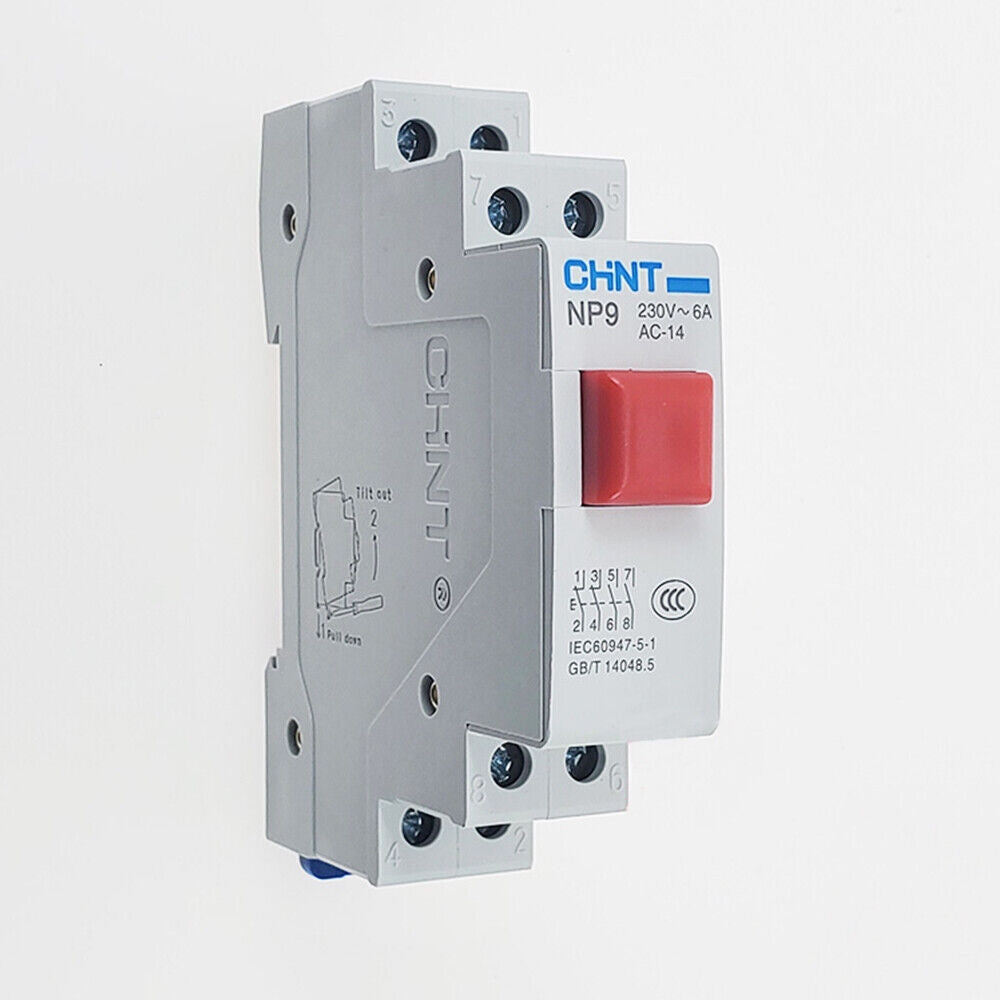

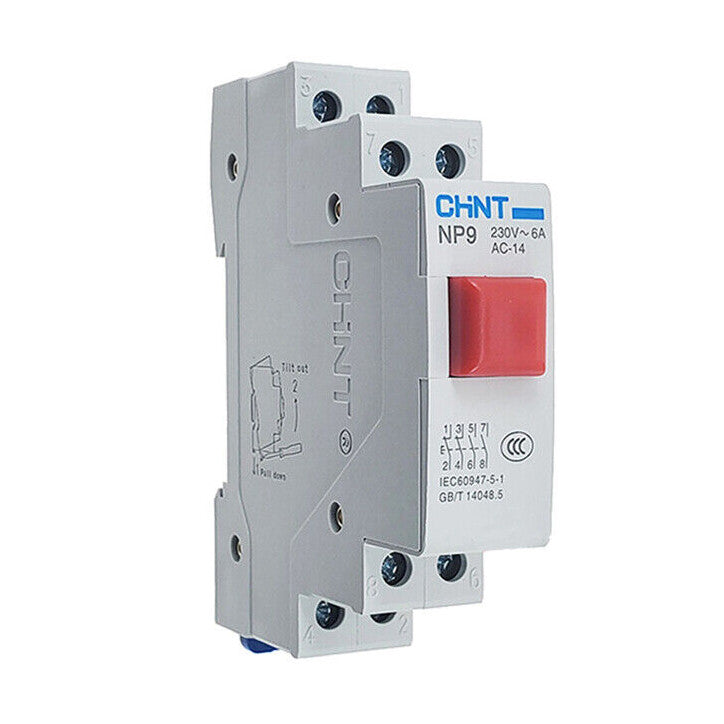

Din Rail Mounting Momentary Push Button Switch Normally Open/ Closed 2NO 2NC NP9
Switch Mechanism: Momentary (A Momentary switch is only conected while you are pressing it.That means the moment you stop applying force on it, it comes back up.)
Model: No Voltage, without LED model
Color: Red
Mounting Style : 35mm Din Rail
Rated working voltage: AC 230V
Rated working current: 6A
Conventional thermal current（Ith）: 16A
Contact: 2 NO 2 NC
Material: Flame retardant Plastic + Metal
Connecting wire: ≤ 6mm²
IP Rating: IP20
Ambient temperature: -5°C to +40°C
Mechanical life: ≥ 0.25 Million Cycle
Electrical life: ≥ 0.1 Million Cycle
Model: No Voltage, without LED model
Color: Red
Mounting Style : 35mm Din Rail
Rated working voltage: AC 230V
Rated working current: 6A
Conventional thermal current（Ith）: 16A
Contact: 2 NO 2 NC
Material: Flame retardant Plastic + Metal
Connecting wire: ≤ 6mm²
IP Rating: IP20
Ambient temperature: -5°C to +40°C
Mechanical life: ≥ 0.25 Million Cycle
Electrical life: ≥ 0.1 Million Cycle
Packing Quantity: 1pcs
