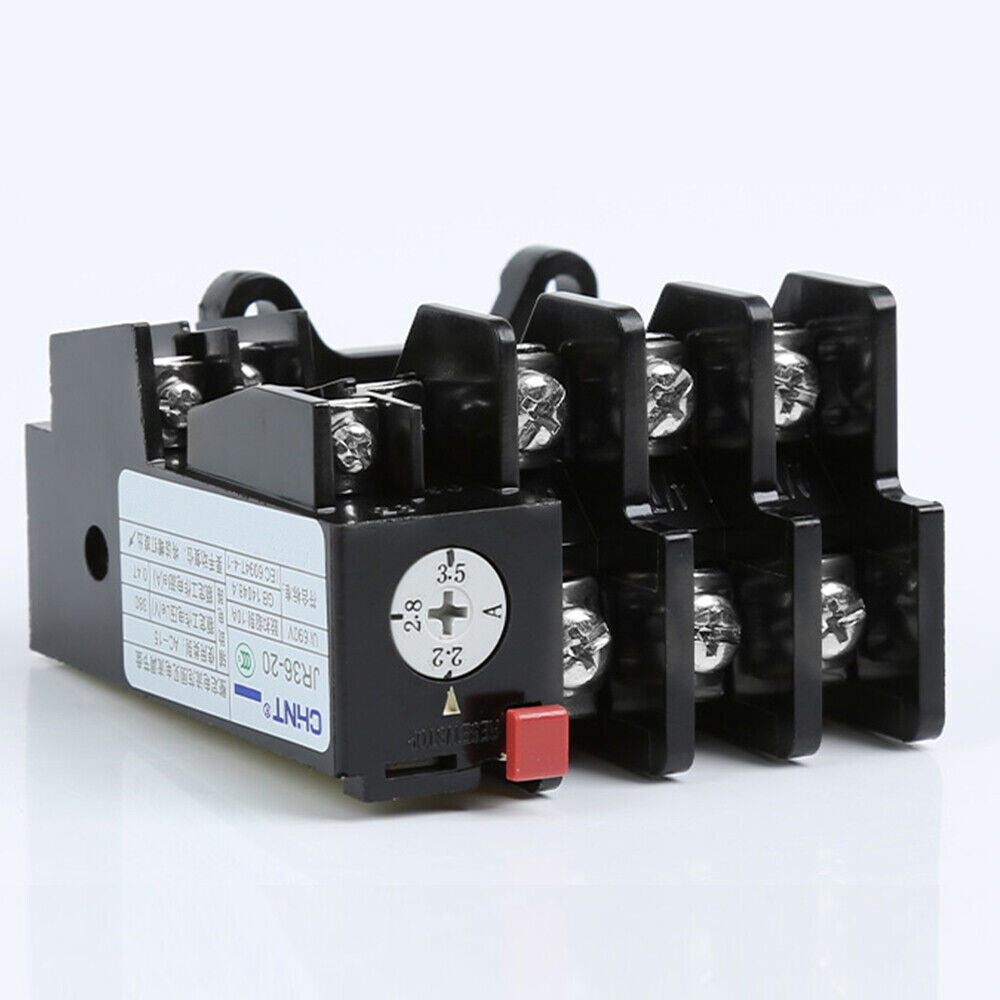

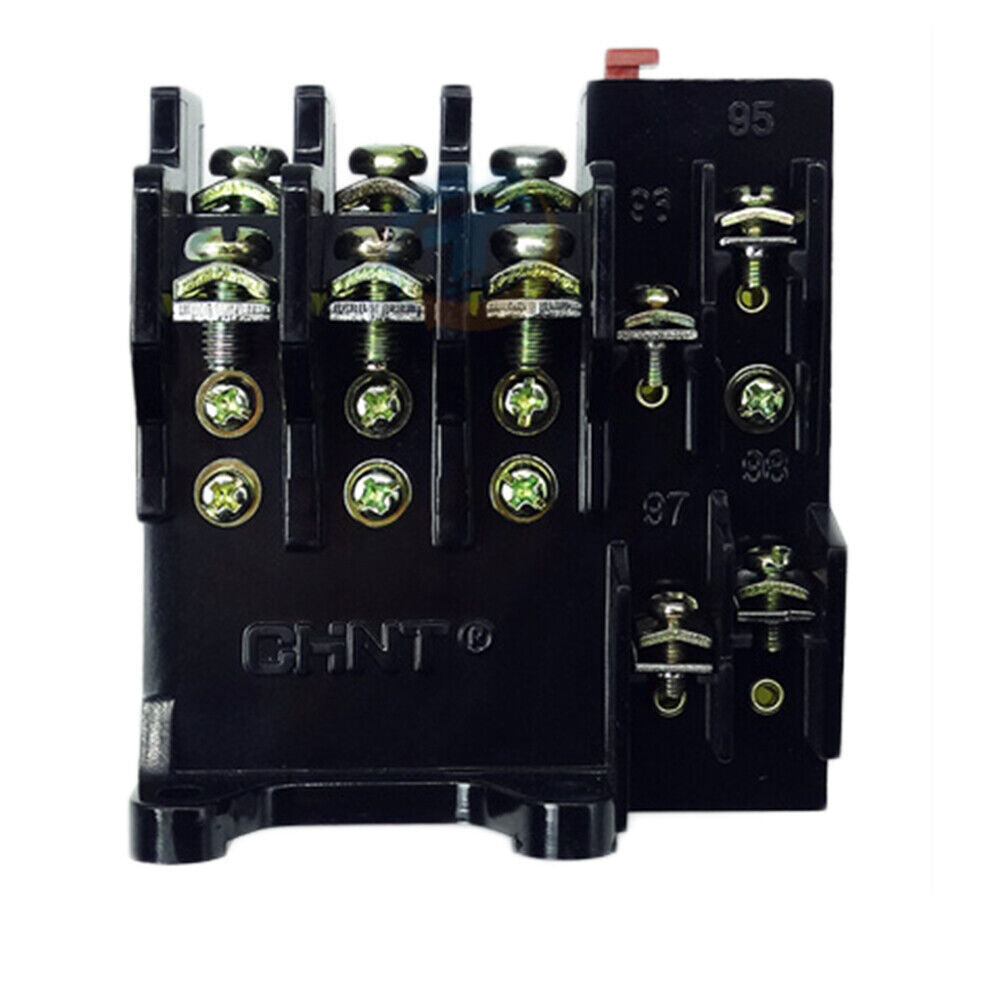

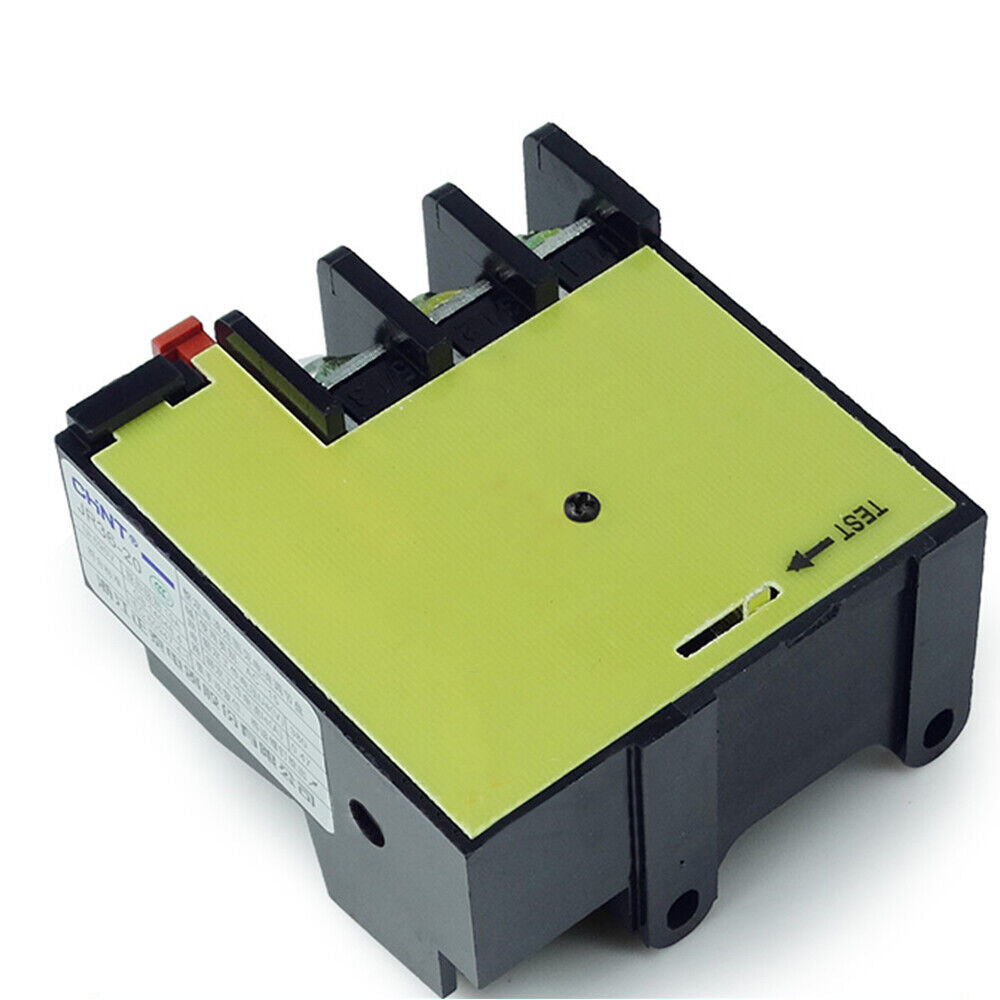

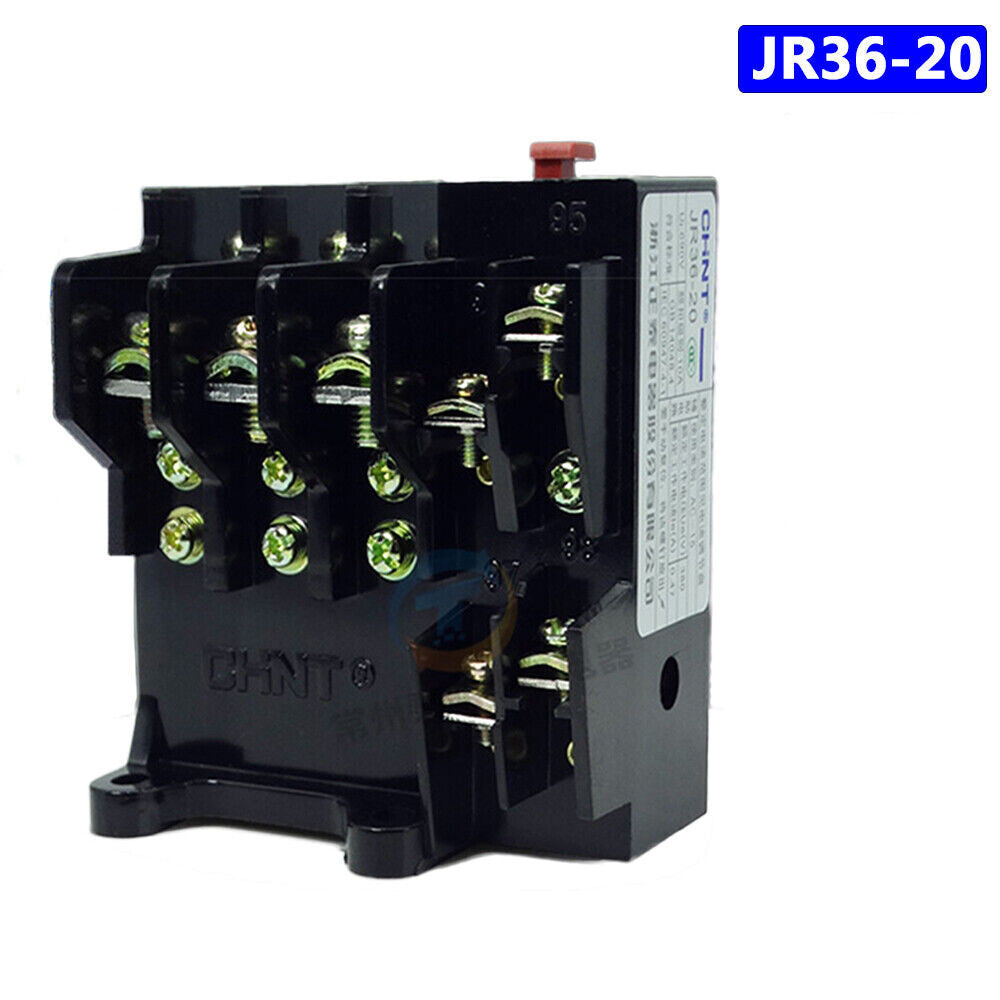

Range from 20-32A 3 Phase Thermal Overload Relay FR for Protect Motor JR36-20
Model: JR36-20
Setting Current Range: 20-32 Amp
Rated insulation voltage (Ui): 690V
Rated Working Voltage (Ue): 380V
Rated Current (AC-15 380V): 0.47A
IP Rating: IP20
Trip Class: Class 10A
Housing Material: Plastic Flame Retardant Material
With open-phase protection，Overload Protection
With continuous adjustable device for setting current
With temperature compensation
Has a testing organization
Has a stop button
With manual and automatic reset buttons
Comes with auxiliary contacts: 1 Normally Open 1 Normally Closed
Ambient air temperature: Maximum operating temperature -35°C to +70°C, normal operating temperature -5°C to +40°C, The average value within 24 hours does not exceed +35°C.
Altitude: not more than 2000m.
Mounting Style: Freestanding
Setting Current Range: 20-32 Amp
Rated insulation voltage (Ui): 690V
Rated Working Voltage (Ue): 380V
Rated Current (AC-15 380V): 0.47A
IP Rating: IP20
Trip Class: Class 10A
Housing Material: Plastic Flame Retardant Material
With open-phase protection，Overload Protection
With continuous adjustable device for setting current
With temperature compensation
Has a testing organization
Has a stop button
With manual and automatic reset buttons
Comes with auxiliary contacts: 1 Normally Open 1 Normally Closed
Ambient air temperature: Maximum operating temperature -35°C to +70°C, normal operating temperature -5°C to +40°C, The average value within 24 hours does not exceed +35°C.
Altitude: not more than 2000m.
Mounting Style: Freestanding
Package included :1 pcs
