DC 12V Pneumatic Electric Solenoid Air Valve 5 Way 2 Position 4V210-08
$33.59
Sale price
$33.59
Regular price
Skip to product information
On Oct 17, 2025 at 05:02:00 PDT, seller added the following information:
DC 12V Pneumatic Electric Solenoid Air Valve 5 Way 2 Position 4V210-08
$33.59
Sale price
$33.59
Regular price

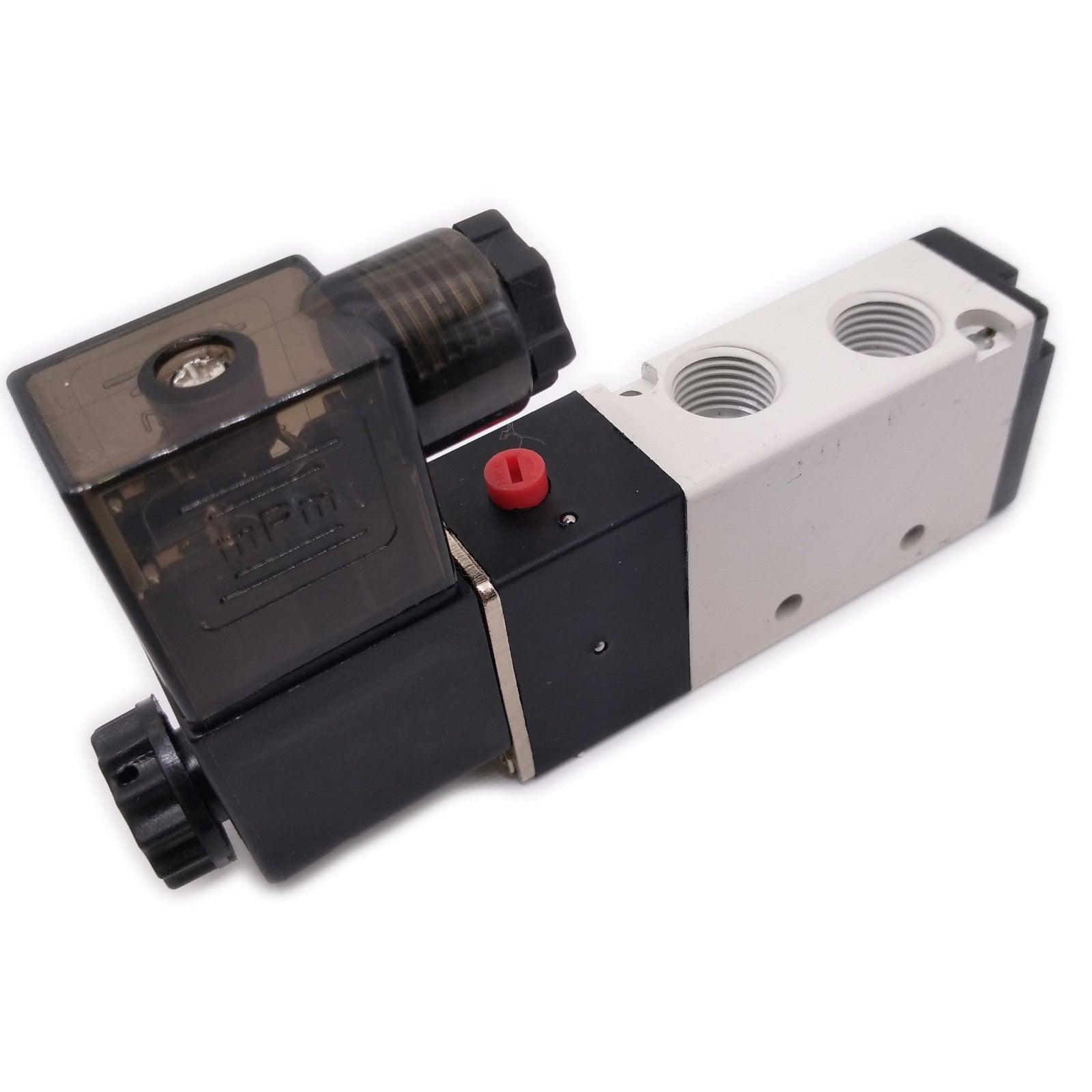

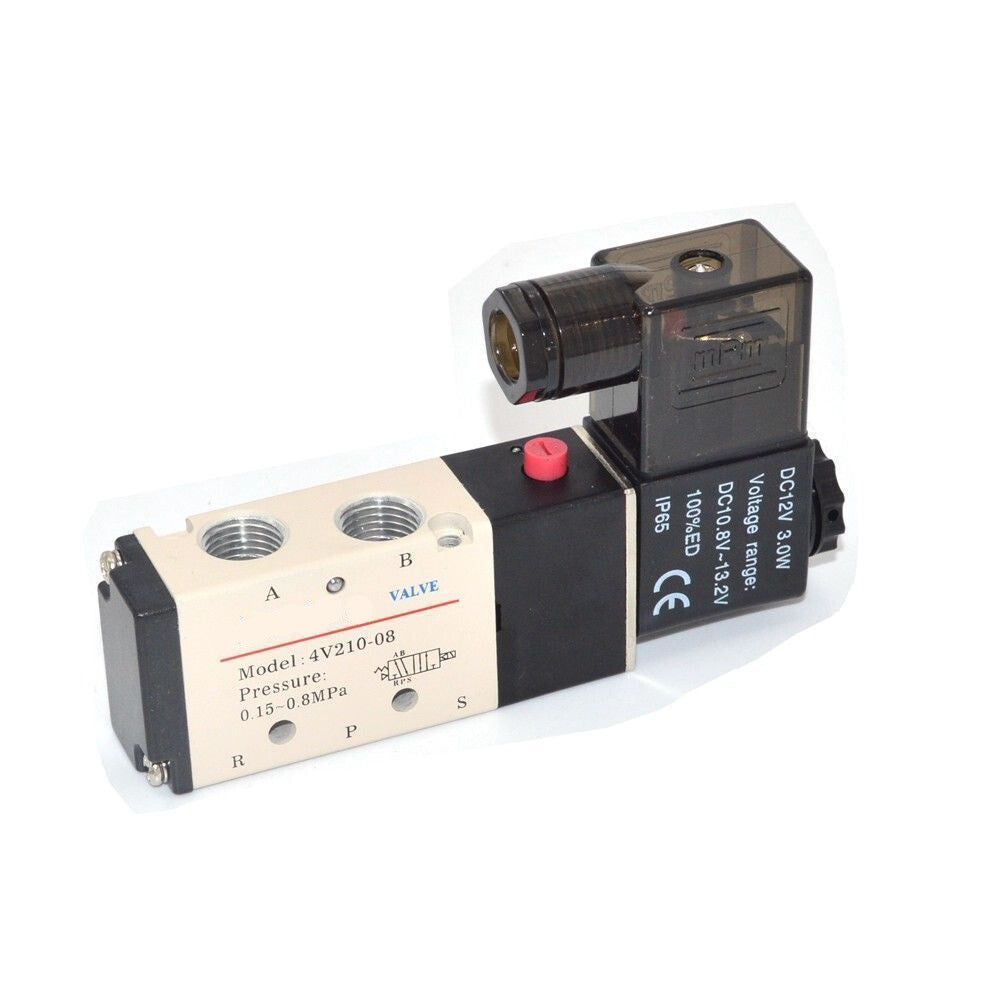

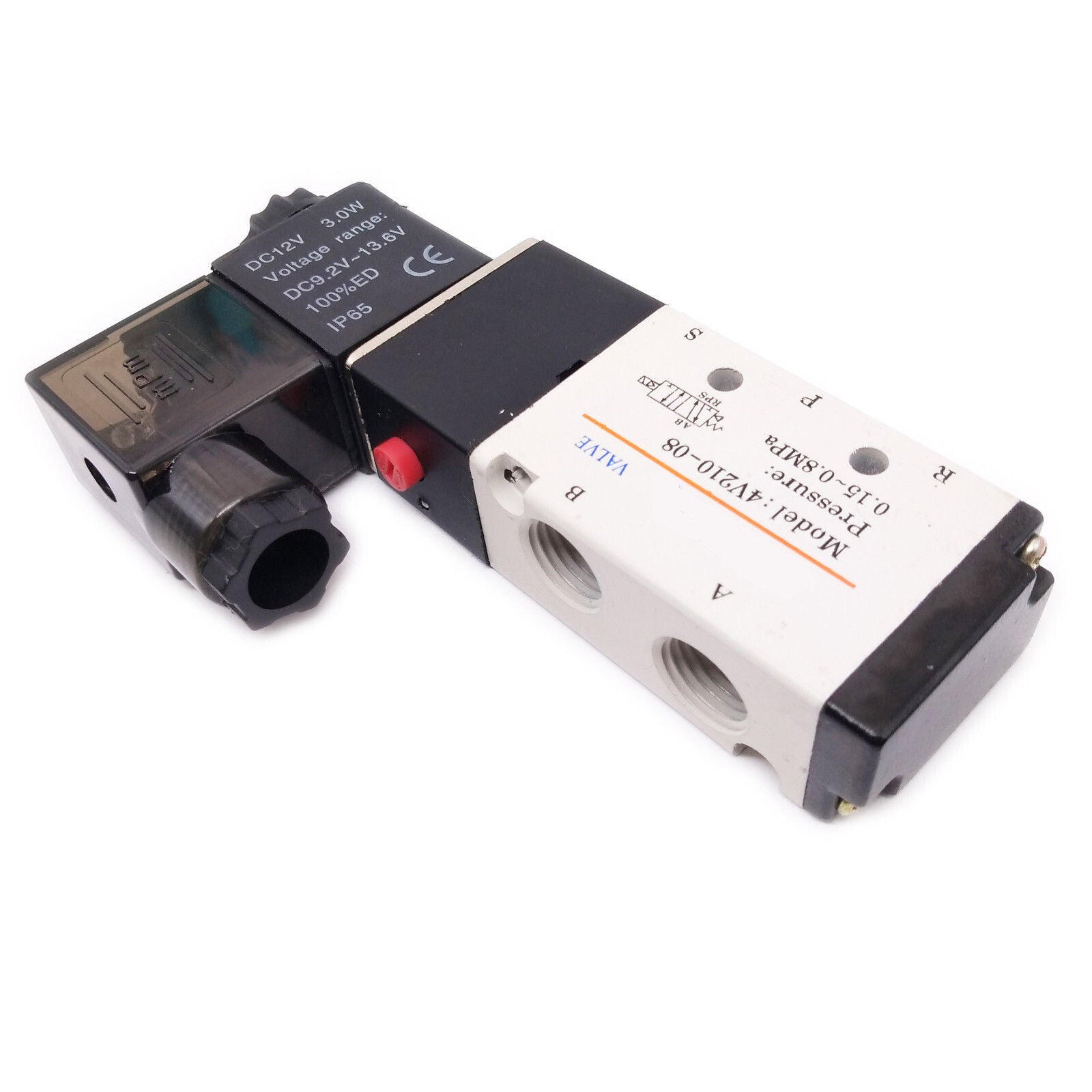

DC 12V Pneumatic Aluminum Electric Solenoid Air Valve 5 Way 2 Position 4V210-08
Model 4V210-08
Type NC+NO
Voltage DC 12V
Power consumption 4.8W
Action Direct acting
Orifice size Orifice size:16mm²(CV=0.78)
Type 5 Port 2 position
Port size IN-OUT:1/4" BSPT,Exhaust:1/8" BSPT
Lubrication Not required
Pressure range 0-1.0MPa(145psi)
Material Aluminum alloy
Insulation F Class
Protection IP65
voltage range -15% - +10%
Temp. range -5 - 60℃
Max. frequency 10 cycles/s
Min. activate time 0.05second
Package:1 x Pneumatic Solenoid Air Valve
