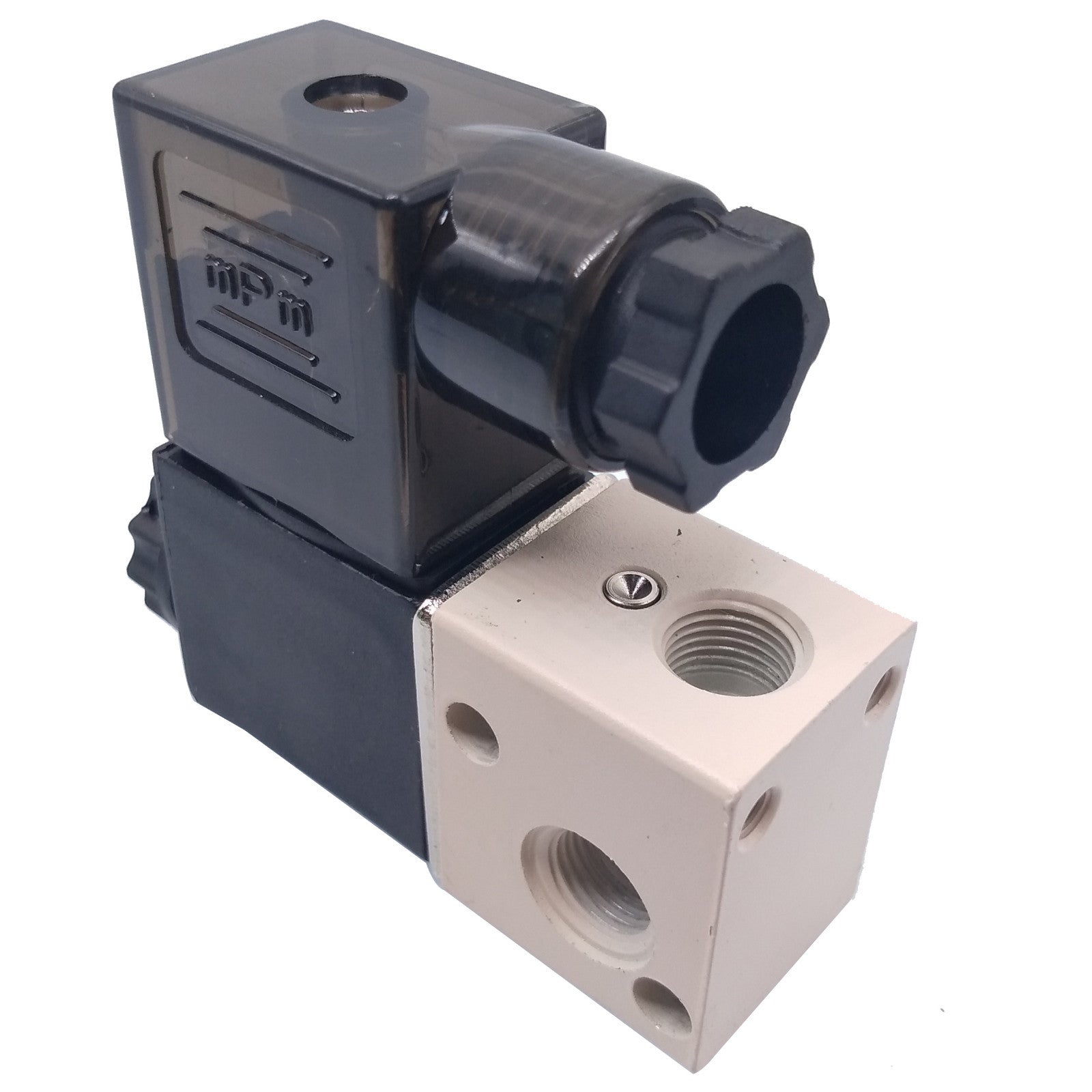

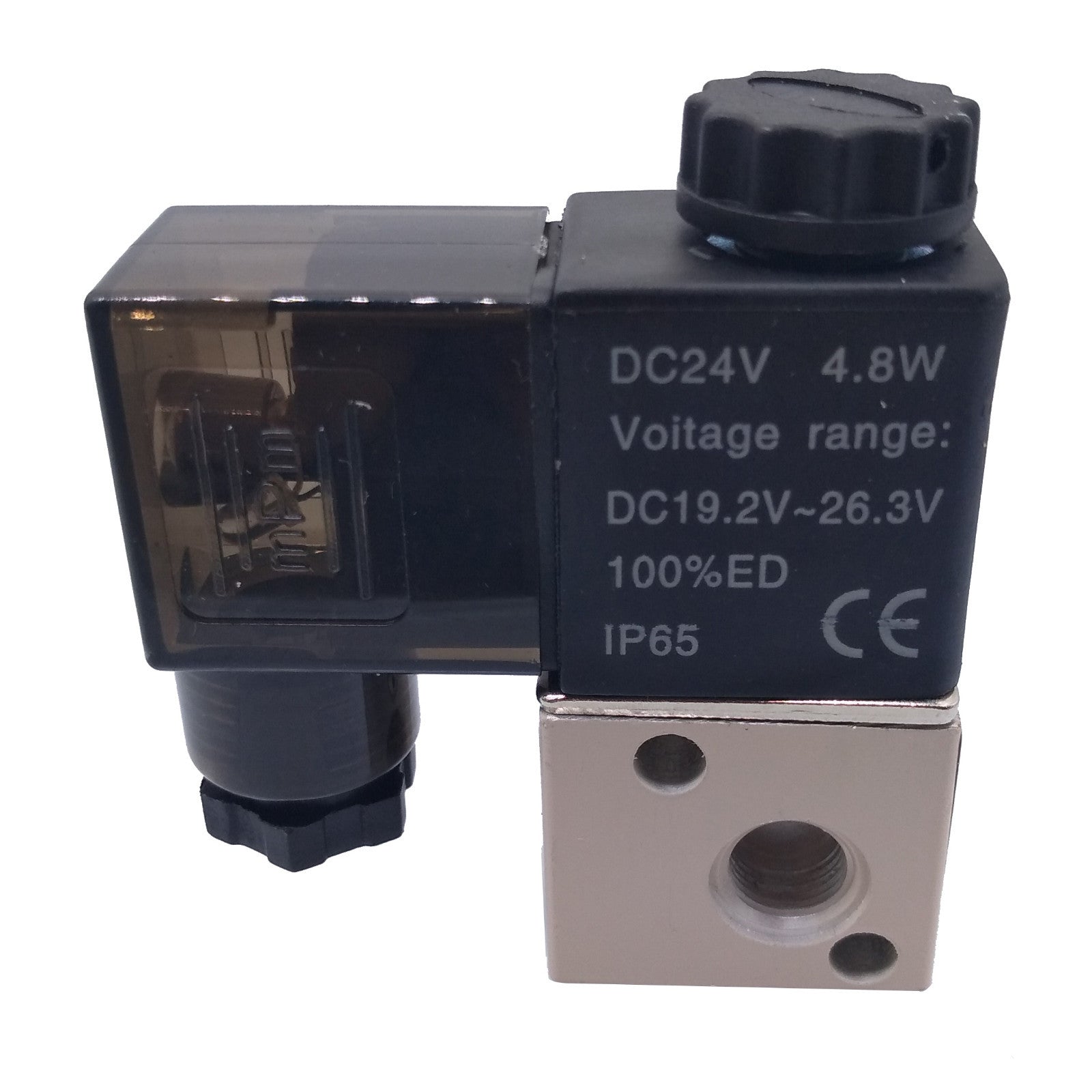

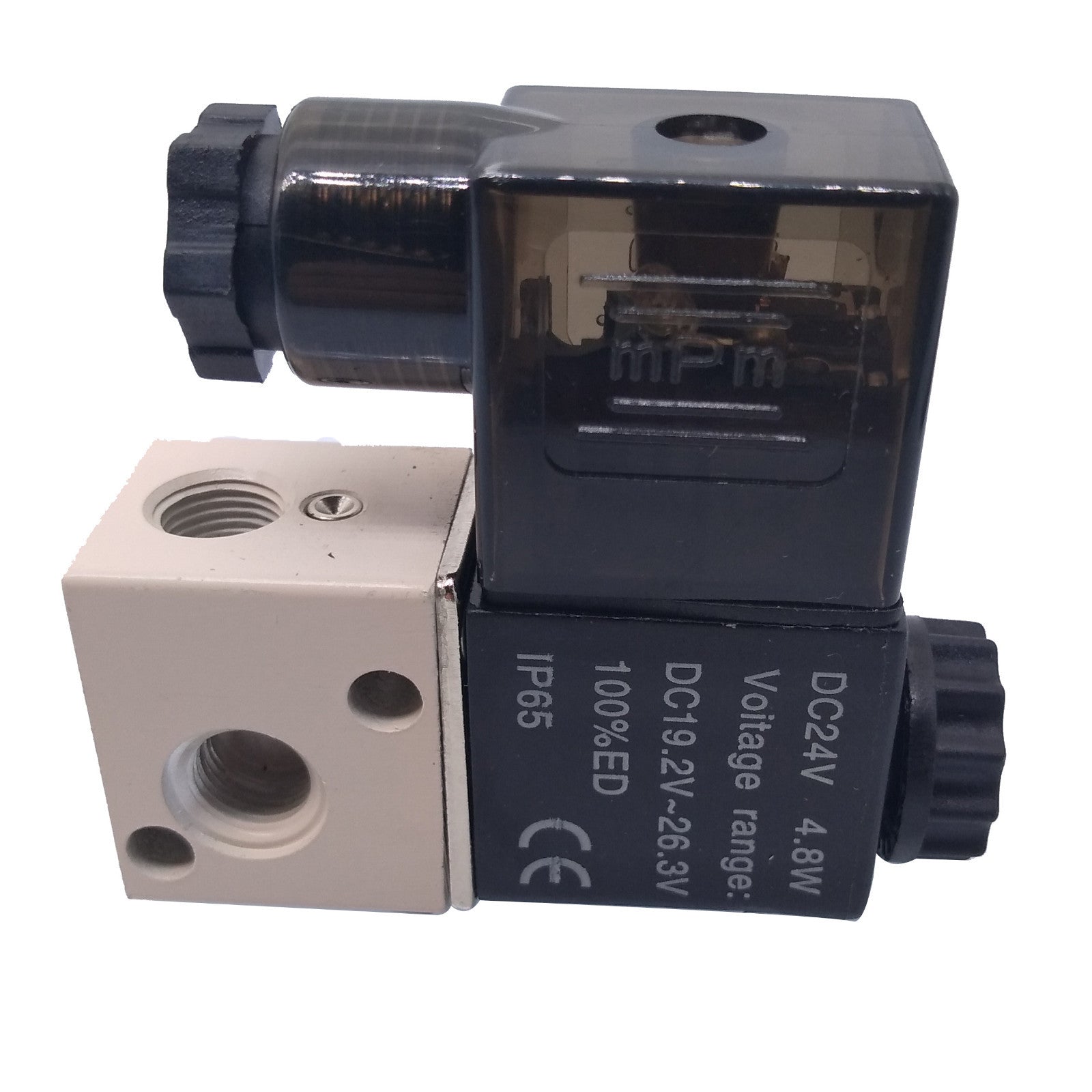

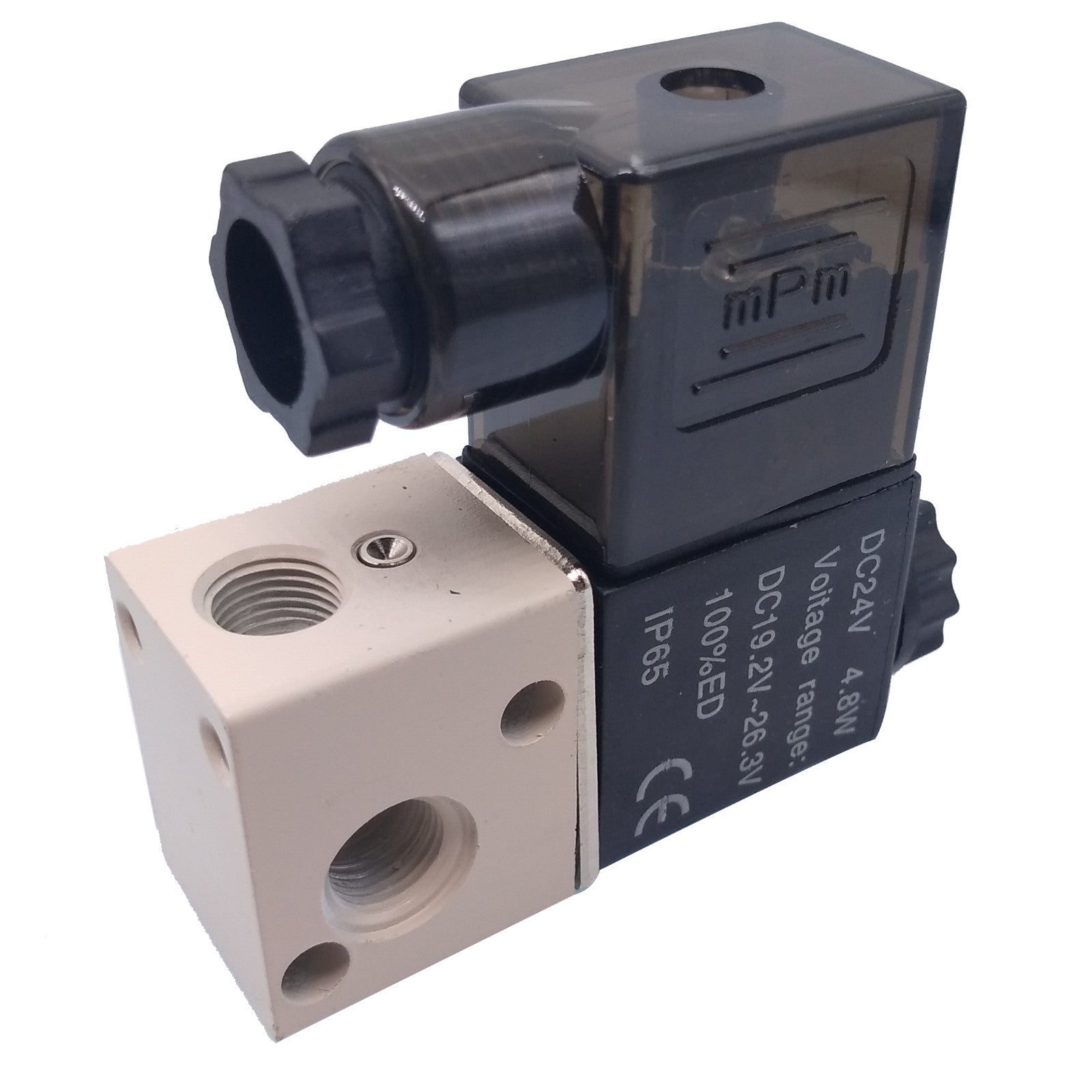

DC 24V Pneumatic Solenoid Air Valve 3 Way 2 Position NC 1/8" PT 3V1-06

DC 24V Pneumatic Solenoid Air Valve 3 Way 2 Position NC 1/8" PT 3V1-06 1/8 inch

Model  3V1-06
Type  NC
Voltage  DC24V
Power consumption  4.8W　
Action  Direct acting
Orifice size  Orifice size:1.2mm(CV=0.23)
Type  3 Port 2 position
Port size  1/8"PT
Lubrication  Not required
Pressure range  0-1.0MPa(145psi)
Material  Aluminum alloy
Insulation  F Class
Protection  IP65
voltage range  -15% - +10%
Temp. range  -5 - 60℃
Max. frequency  10 cycles/s
Min. activate time  0.05second

Package:1 x Pneumatic Solenoid Air Valve
