Electric Motor 3 Phase Thermal Overload Relay FR NR2-25 Setting Current Range from 17 Amp to 25 Amp
"NO" = Normally Open, "NC" = Normally Closed
Model: NR2-25
Setting Current Range: 17-25 Amp
Suitable Contactor Model: CJX2-25~32
Rated insulation voltage (Ui): 690V
Rated impulse withstand voltage (Uimp) : 6kV
Rated current (AC-15 220V): 2.73A
Rated current (AC-15 380V): 1.58A
Rated current (DC-13 220V): 0.2A
IP Rating: IP20
Trip Class: Class 10A
Housing Material: Plastic Flame Retardant Material
With open-phase protection，Overload Protection
With continuous adjustable device for setting current
With temperature compensation
With operation indicator
Has a testing organization
Has a stop button

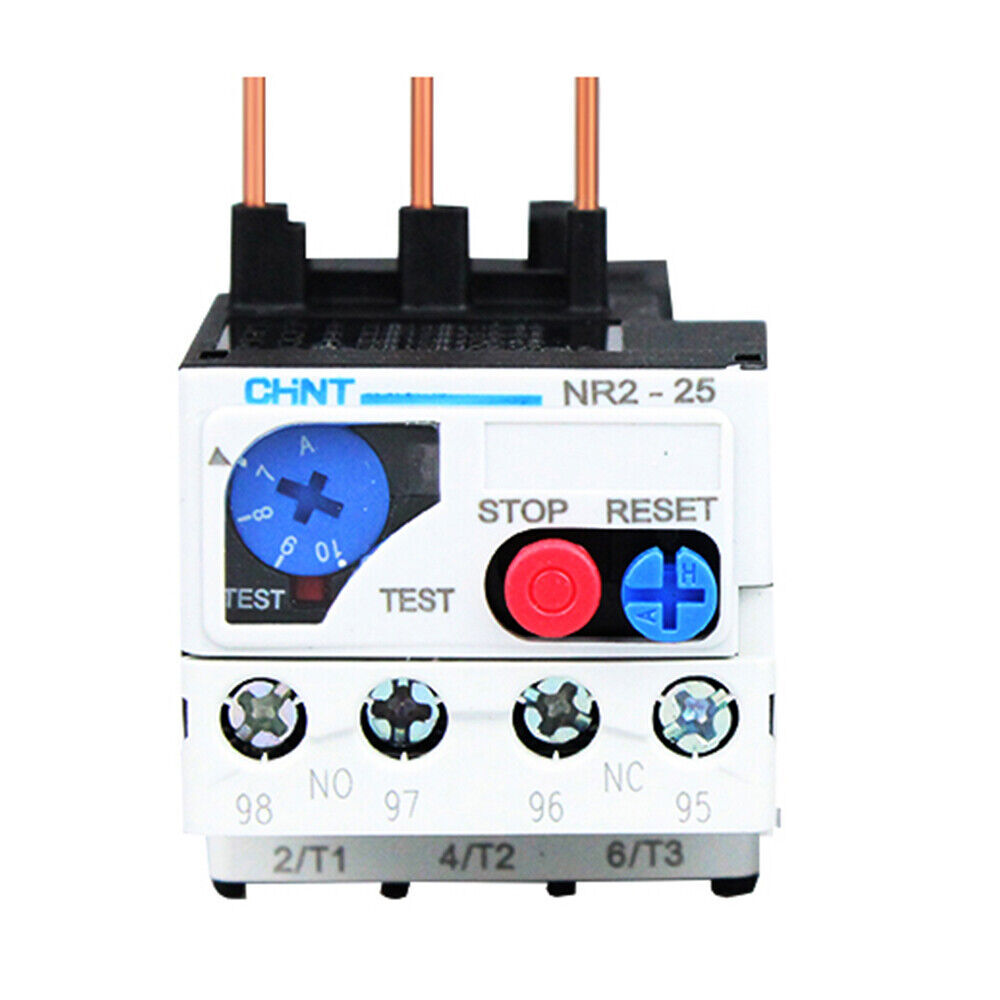

With manual and automatic reset buttons
Comes with auxiliary contacts: 1 Normally Open 1 Normally Closed
Ambient air temperature: Maximum operating temperature -35°C to +70°C, normal operating temperature -5°C to +40°C, The average value within 24 hours does not exceed +35°C.
Altitude: not more than 2000m.
Mounting Style: Plug in
Model: NR2-25
Setting Current Range: 17-25 Amp
Suitable Contactor Model: CJX2-25~32
Rated insulation voltage (Ui): 690V
Rated impulse withstand voltage (Uimp) : 6kV
Rated current (AC-15 220V): 2.73A
Rated current (AC-15 380V): 1.58A
Rated current (DC-13 220V): 0.2A
IP Rating: IP20
Trip Class: Class 10A
Housing Material: Plastic Flame Retardant Material
With open-phase protection，Overload Protection
With continuous adjustable device for setting current
With temperature compensation
With operation indicator
Has a testing organization
Has a stop button
With manual and automatic reset buttons
Comes with auxiliary contacts: 1 Normally Open 1 Normally Closed
Ambient air temperature: Maximum operating temperature -35°C to +70°C, normal operating temperature -5°C to +40°C, The average value within 24 hours does not exceed +35°C.
Altitude: not more than 2000m.
Mounting Style: Plug in
Package included : 1 pcs
