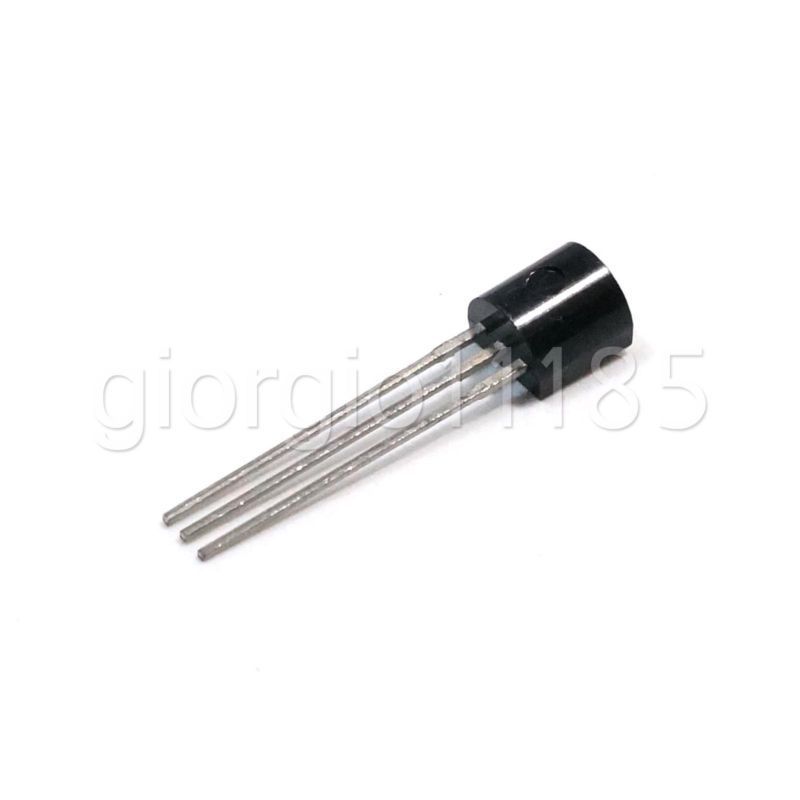

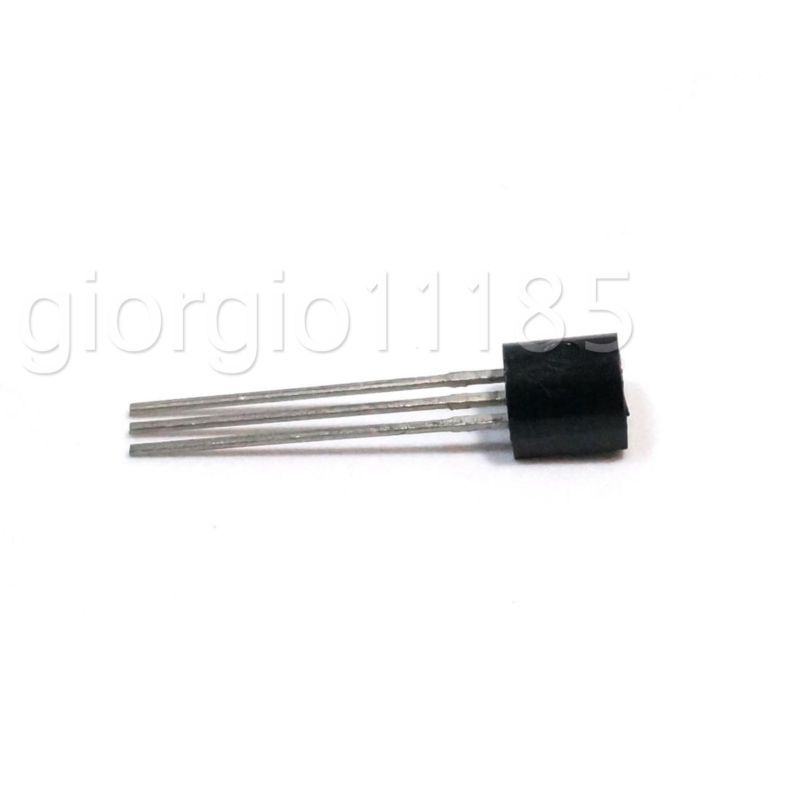

US Stock 10pcs 2N5460 TO-92 P-Channel General Purpose FET Transistor

Lot of 10 2N5460 TO-92 P-Channel General Purpose FET Transistor

Part NO.:2N5460
Package TO-92-3
Description:IC JFET P-CH SS 40V TO92
Current - Drain (Idss) @ Vds (Vgs=0):1mA @ 15V
Drain to Source Voltage (Vdss) -
Current Drain (Id) - Max -
FET Type:P-Channel
Voltage - Breakdown (V(BR)GSS):40V
Voltage - Cutoff (VGS off) @ Id 750mV @ 1µA
Input Capacitance (Ciss) @ Vds 7pF @ 15V
Resistance - RDS(On) -
Mounting Type:Through Hole
Supplier Device Package:TO-92-3
Power - Max:350mW
