US Stock Blue LCD Digital AMP Current Meter Ammeter AC 100A Current Transformer

New Blue LCD Digital AMP Panel Meter Ammeter AC 100A & Current Transformer

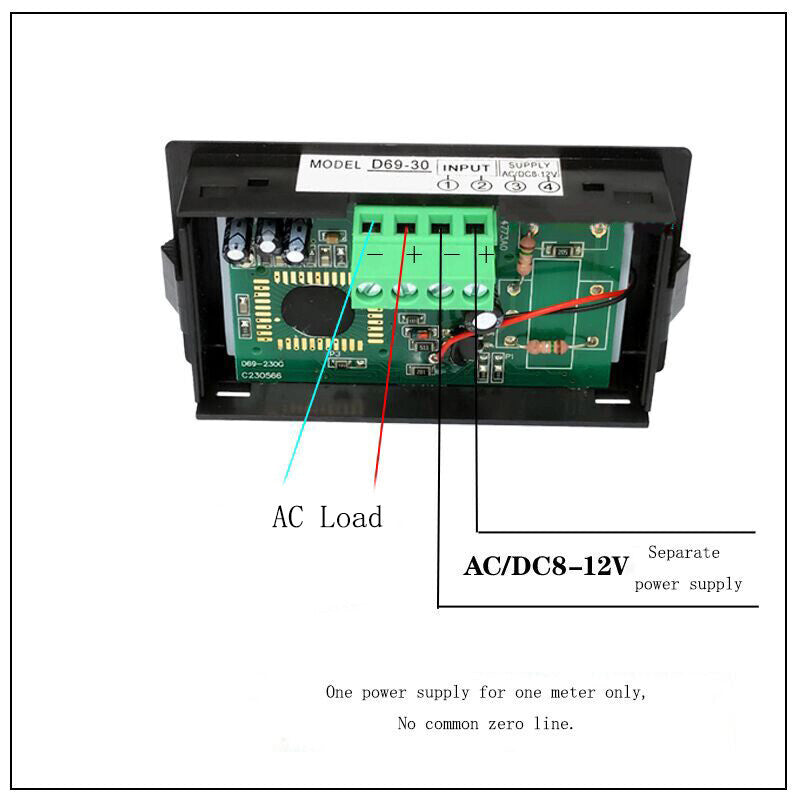

The power supply can be AC or DC 8-12V, and has reversed connection protection.The working power supply and the load cannot share the same power supply; they need to be completely separated.
This item has high stability, precision and anti-interference.
Use standard size, it is easy to install.

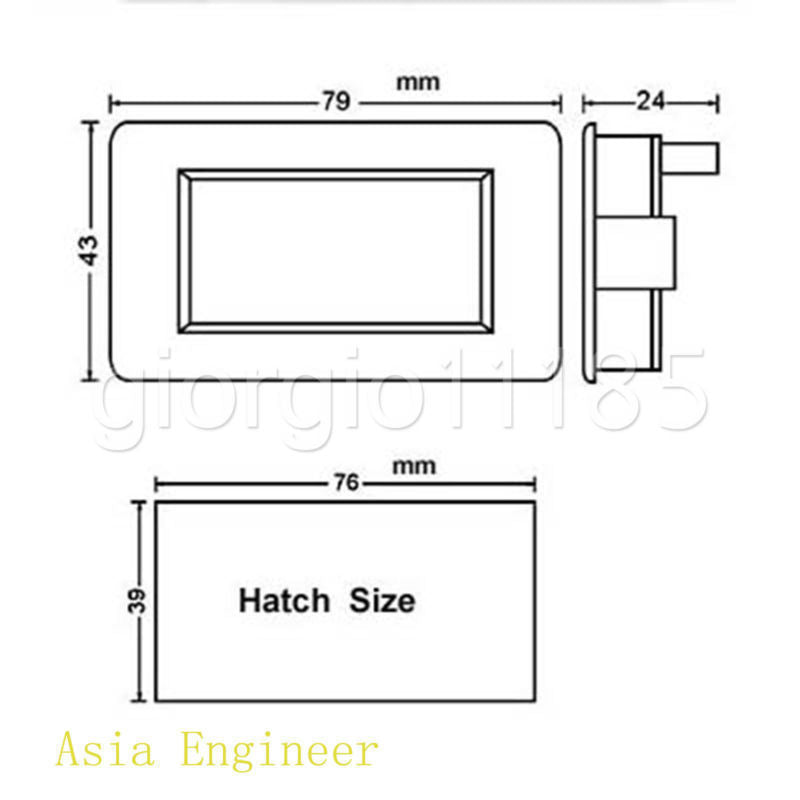

Dimensions: 79 x 43 x 25 mm; Installation Hole: 76 x 39 mm.
Technical Parameters:

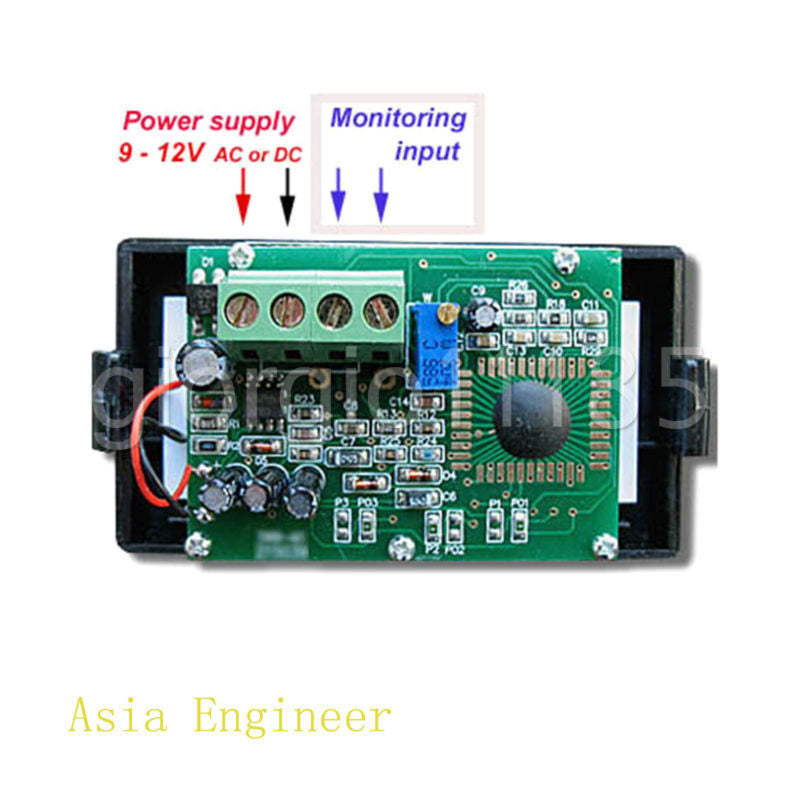

Operating voltage: AC / DC 8 - 12V
Measurement range: AC 0-100A(need external Current transformer)
Operating current: <15mA

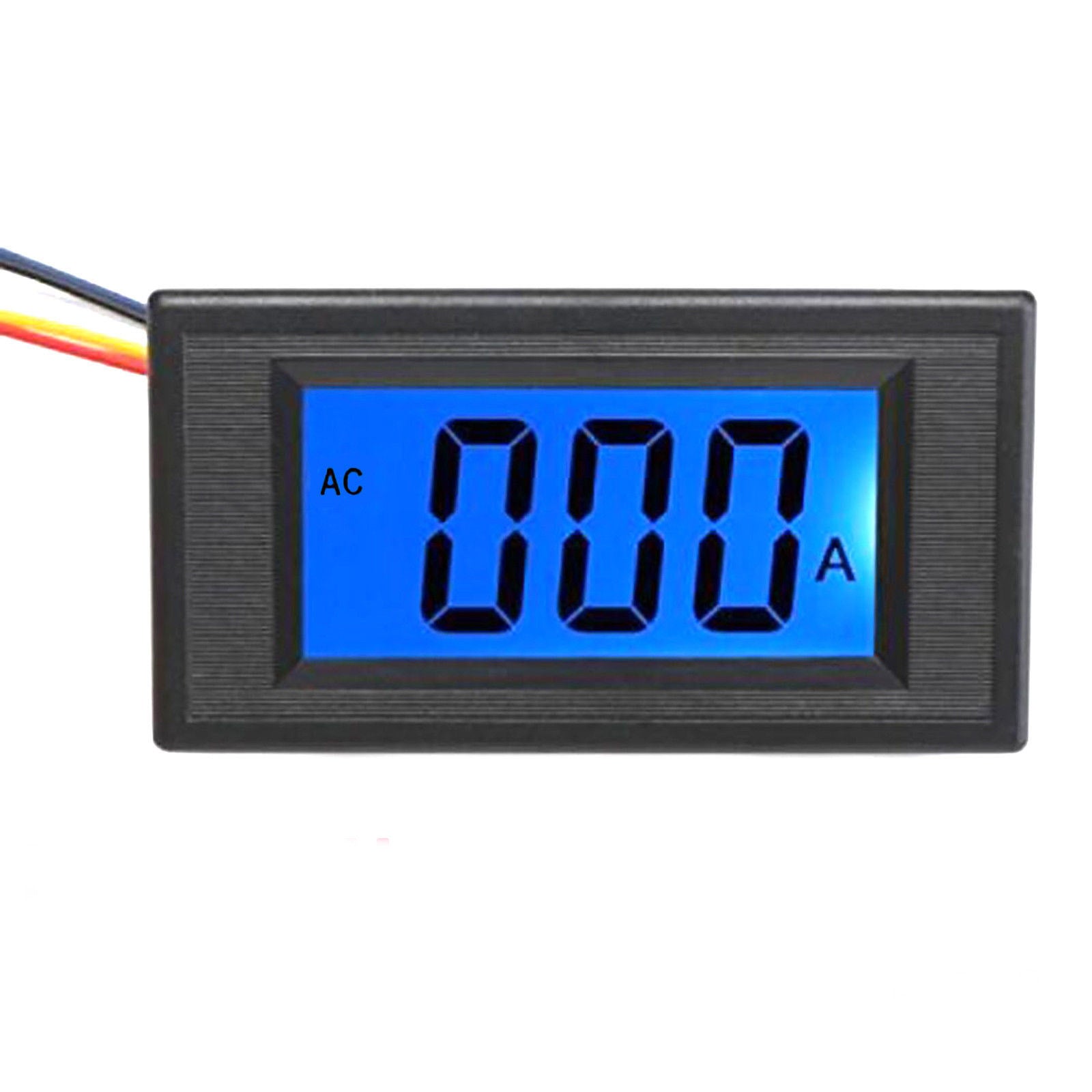

Display: LCD, Blue backlight, Character height 20mm
Dimensions: 79 x 43 x 25 mm
Installation hole: 76 x 39 mm
Net weight: about 60g
Measuring rate: 2 times / S
Over-range display: the first shows "1" or "-1"

Extreme working conditions:
Working temperature: -10 ~ + 50c
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106 kPa
Sun exposure: no direct exposure

Package Includes:
1x LCD Digital Ammeter

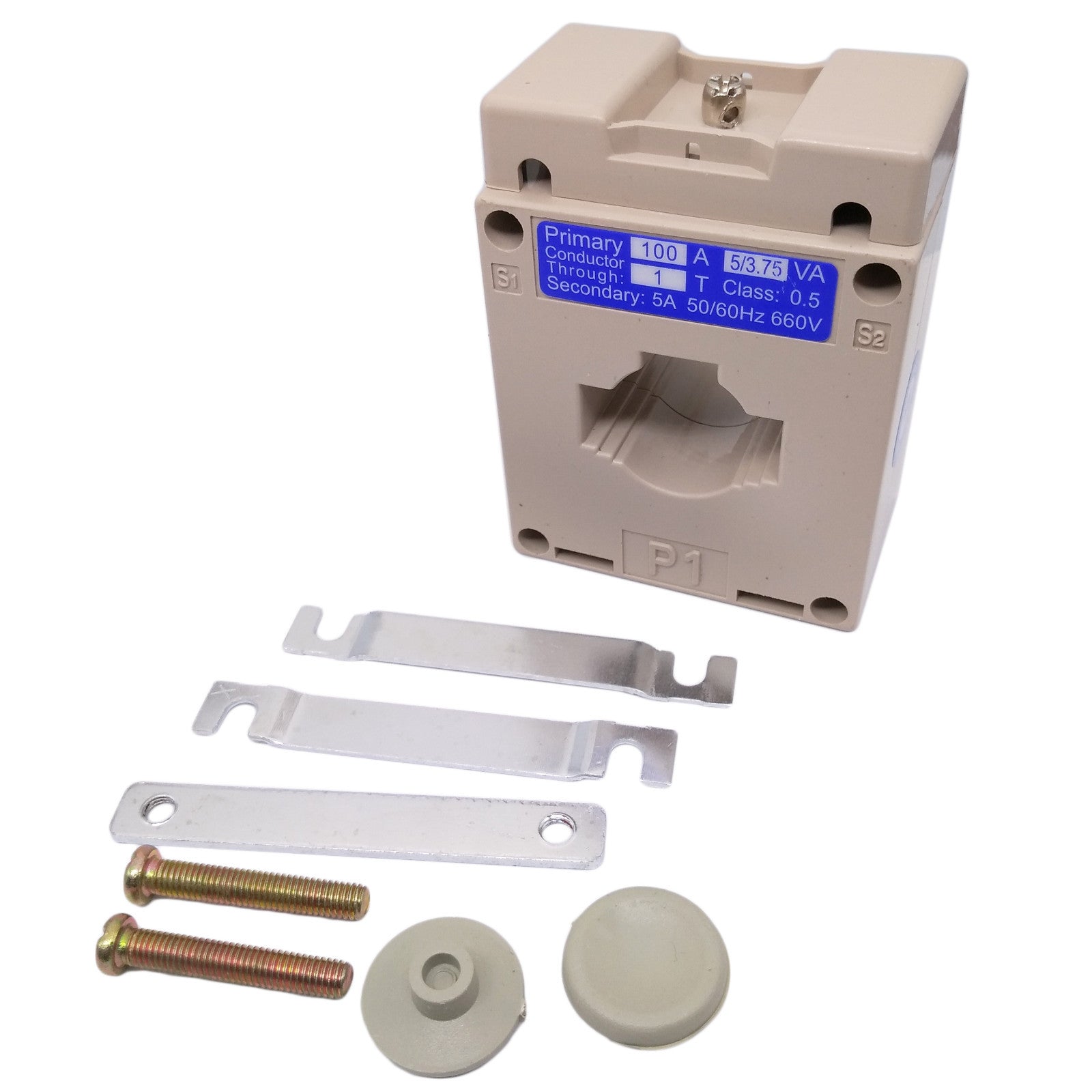

1x 100/5 Current transformer
