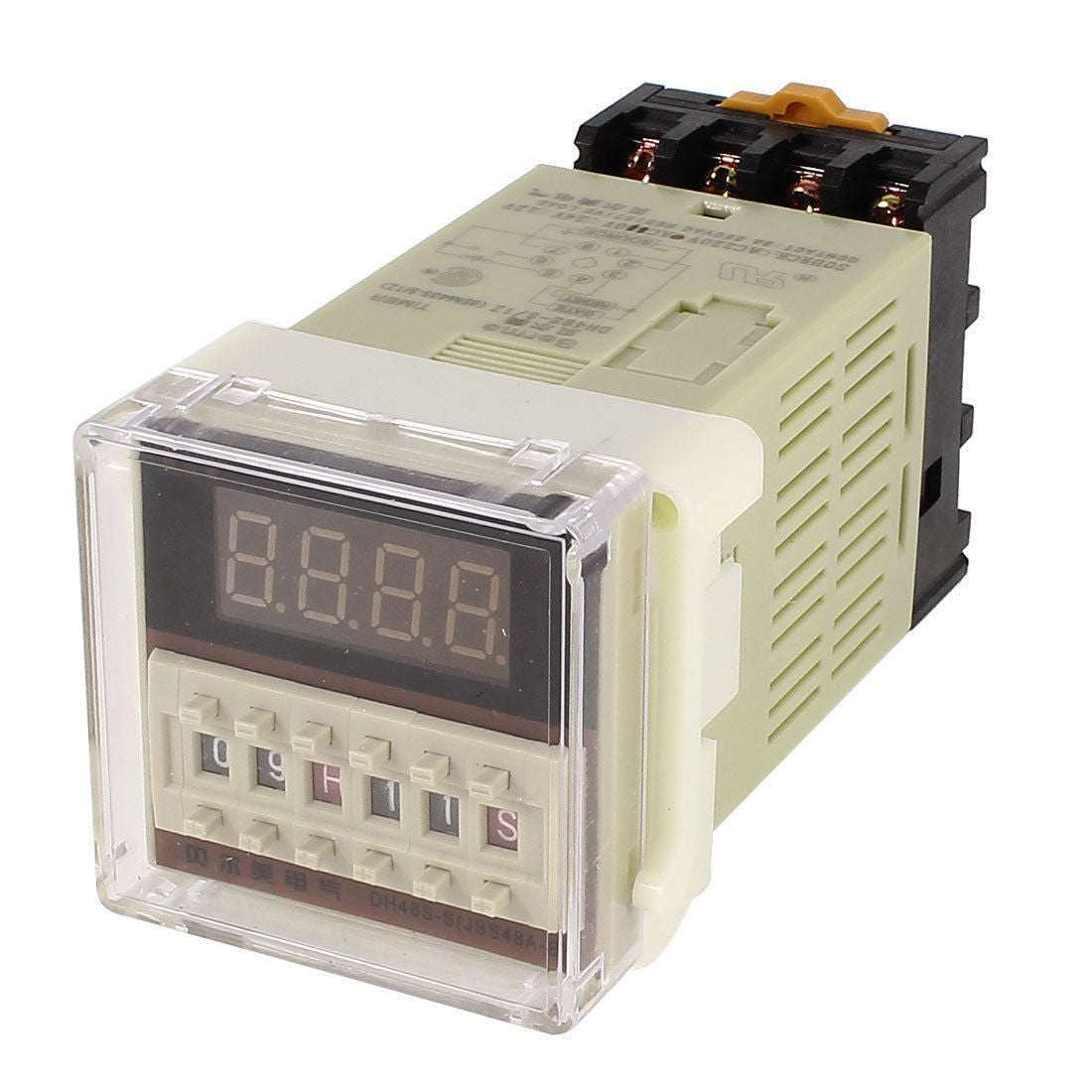

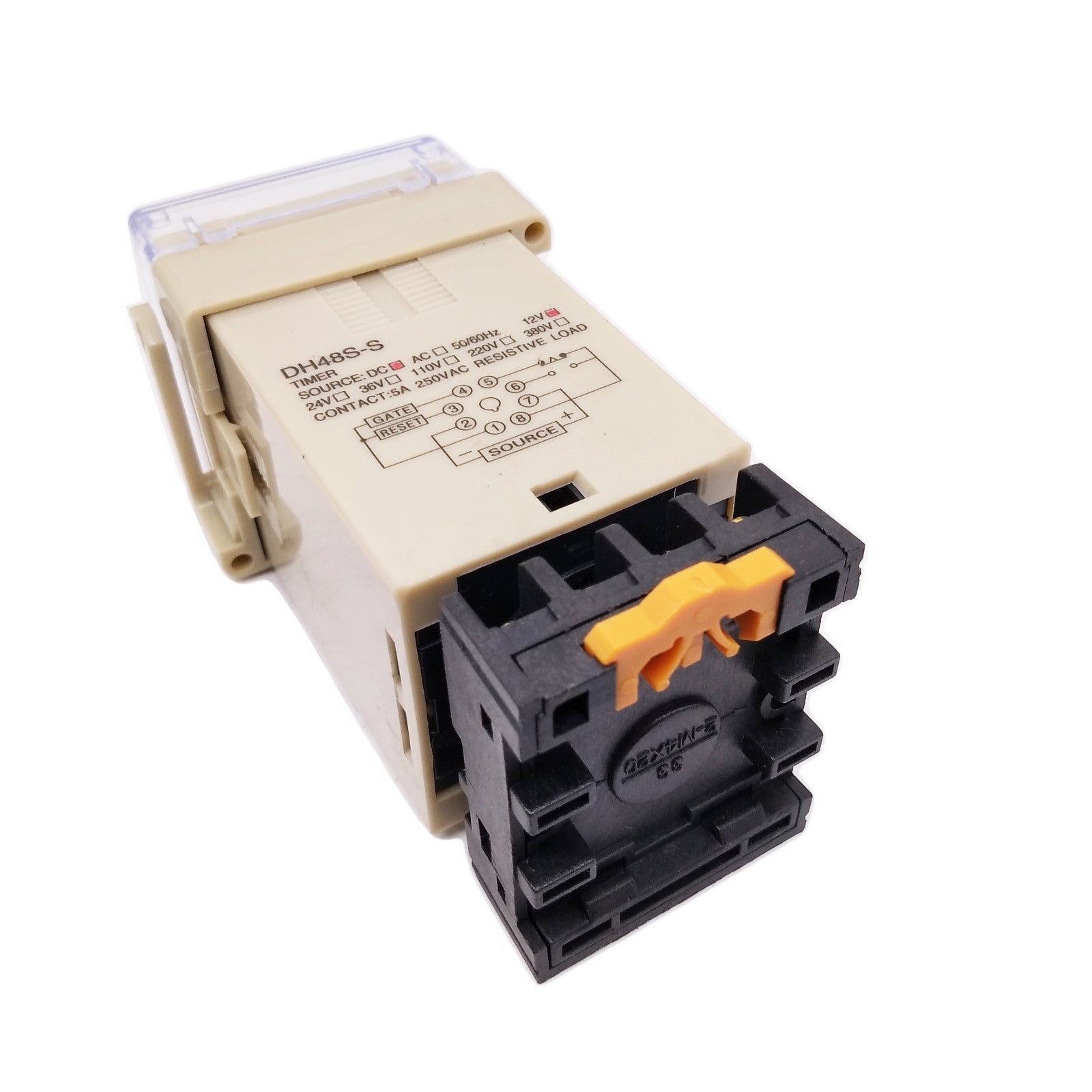

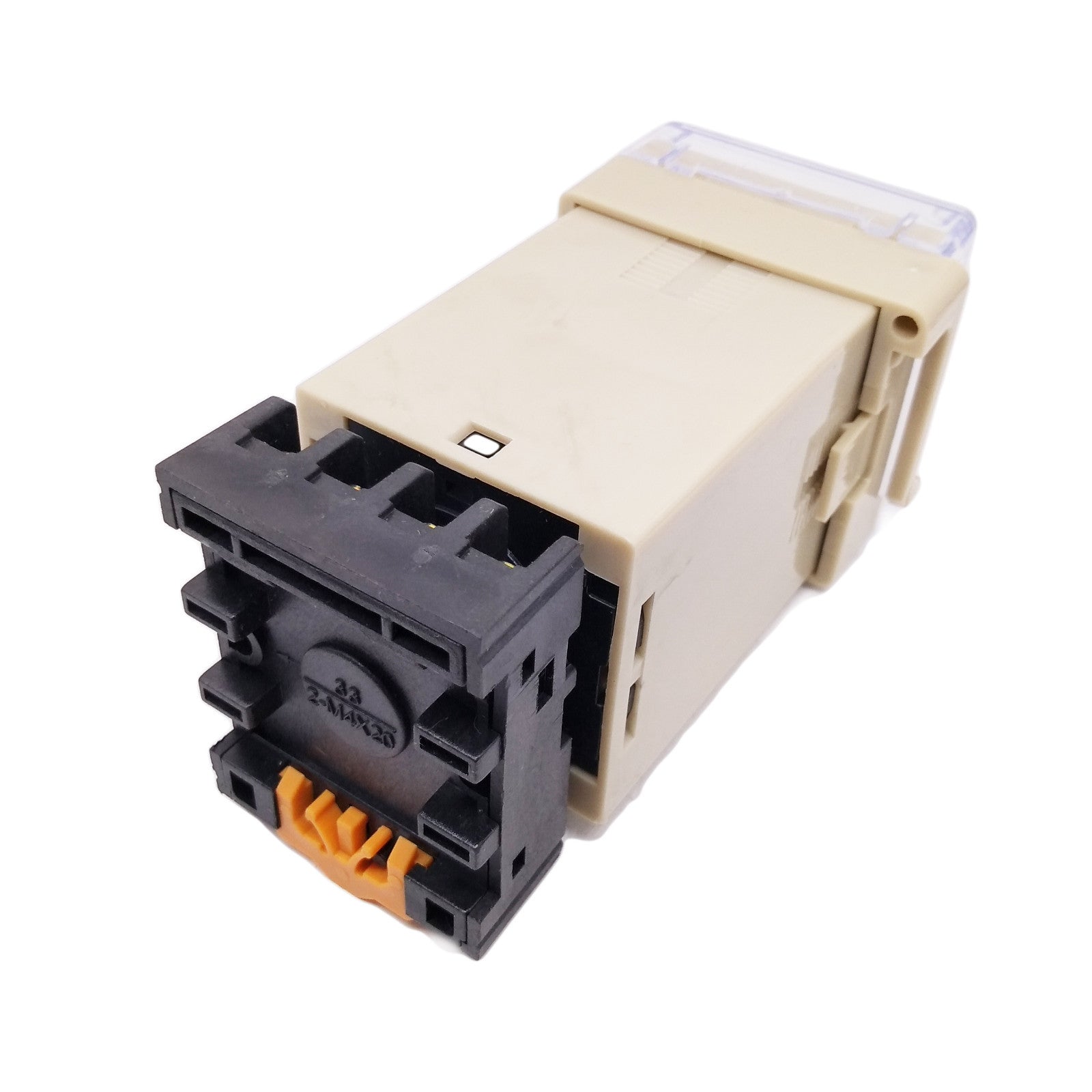

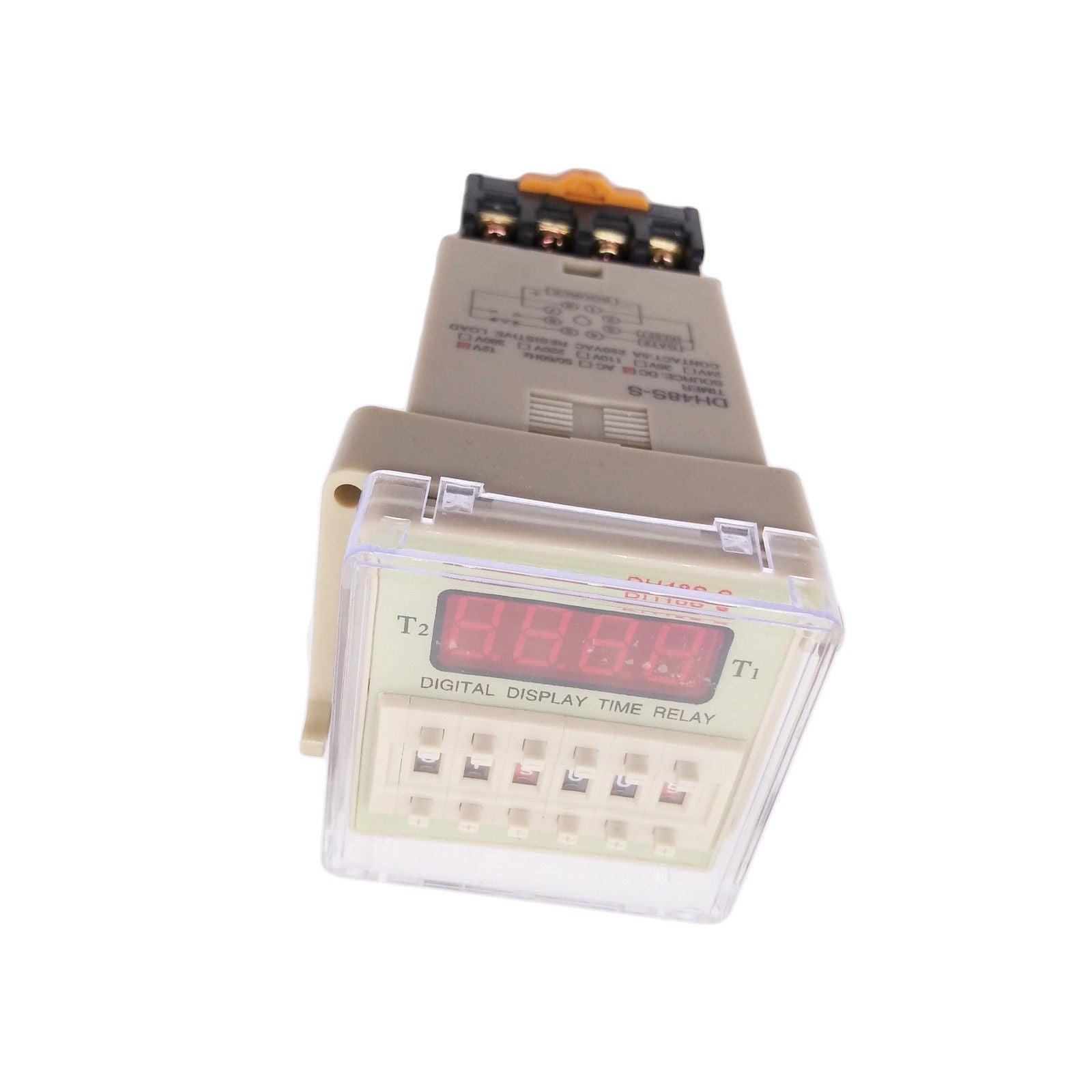

US Stock DC 12V Digital Precision Programmable Time Delay Relay DH48S-S & Base

DC 12V Digital Precision Programmable Time Delay Relay DH48S-S With Socket Base

Description:
100% brand new and high quality
Material: Plastic
Model : DH48S-S
Contact form:Repeat cycle SPDT
Delay time: 0.1s-990h
Supply voltage: 12V DC
Delay Accuracy: 0.3 ≤% ± 0.05S 50 / 60Hz
Contact form: a group of delay with reset, repeat the cycle
Dimensions: 10.8*5*5cm/4.25"*1.97"*1.97" (L*W*H)
The size of hole: 45.5mm × 45.5mm
Setting method: Asymmetrical delay time can be set arbitrarily
Note: The switch delay can be set
Wiring method:
8-5-6 delay changeover contact, one normally open and one normally closed
2-7 Connect the power supply
1-4 ON Pause
1-3 On Reset
Note: The reset terminal and the terminal can not be connected to the input voltage to avoid damage to the relay
No retail package

Package includes:
1Pc x Timer Relay With Base
